Brand: DESTACO

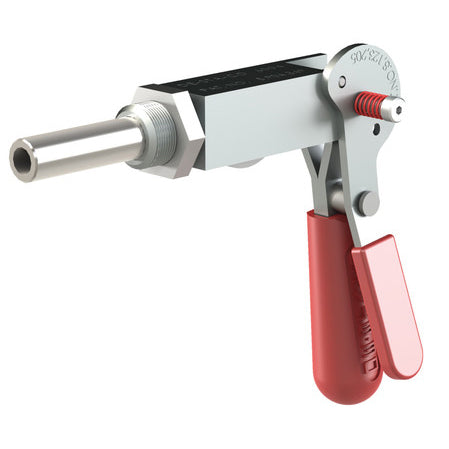

DESTACO 6024-R - 6024 WITH TOGGLE-LOCK PLUS RELEASE LEVER
SKU: DE-STA-CO-6024-R
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
The Destaco 6024-R Straight Line Action Clamps, belonging to the 6000 Series, offer robust clamping solutions with a toggle lock plus feature for added security. Designed for imperial applications, these clamps have a plunger travel of 2.6 inches (66.0 mm) and a maximum holding capacity of 2100.0 lbf (9340.0 N). With a weight of 3.53 lb (1.6 kg), they provide a sturdy clamping mechanism suitable for various industrial settings. Constructed from standard steel material, these clamps ensure durability and reliability in clamping operations. The exerting force ratio is 21:1, enabling efficient clamping with minimal effort. Additionally, these clamps are suitable for manual, power, and hydraulic clamp applications. The base mounting style is flange, and the plunger thread is 3/8-16. With their toggle lock plus feature and robust design, the Destaco 6024-R Straight Line Action Clamps provide secure and efficient clamping solutions for various industrial needs.
Plunger Travel (in) | 2.6 |
Weight (lb) | 3.53 |
Maximum Holding Capacity (lbf) | 2100.0 |
Weight (kg) | 1.6 |
Imperial or Metric Product | Imperial |
Plunger Travel (mm) | 66.0 |
Maximum Holding Capacity (N) | 9340.0 |
Spindle (Recommended) | 210203 |
Product Series | 6024 |
Mounting Nut (Supplied) | 624105 |
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 21:1 |
Standard Material | Steel |
Spindle Included? | No |
Plunger | Round |
product_status(Possible Values : Active, Legacy, No Series) | Active |
Toggle Lock Plus | Yes |
Base Mounting Style | Flange |
DistributorGroup | Workholding (Manual, Power and Hydraulic Clamps) |
Product Function | Clamping |
Plunger Thread | 3/8-16 |
Product Type | Threaded Body |
