Brand: DESTACO
DESTACO 6004-RSS - 6004 STAINLESS STEEL CLAMPS STRAIGHT LINE ACTION WITH TOGGLE-LOCK PLUS
SKU: DE-STA-CO-6004-RSS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

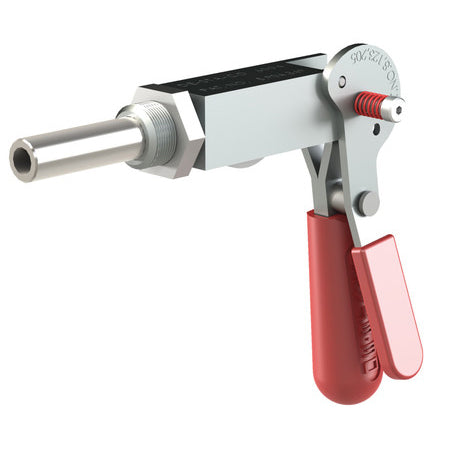

The Destaco 6004-RSS Straight Line Action Clamps, part of the 6000 Series, are robust and reliable tools designed for industrial clamping applications. Constructed from stainless steel, they offer durability and corrosion resistance, ensuring longevity in harsh working environments. With a maximum holding capacity of 600.0 lbf (2670.0 N) and a plunger travel of 1.5 inches (38.1 mm), these clamps provide strong and secure clamping action for various workpieces. Featuring a toggle lock plus mechanism, they offer added security by locking in both extended and retracted positions. The round plunger and flange base mounting style ensure precise and stable operation during use. Weighing 0.9 lb (0.41 kg), these clamps strike a balance between lightweight design and sturdy construction, making them easy to handle while offering sufficient clamping force. They are designed for imperial applications, featuring a 5/16-18 plunger thread. Trusted for their quality and performance, the Destaco 6004-RSS Straight Line Action Clamps are suitable for a wide range of clamping needs in industrial settings.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
| Weight (lb) | 0.9 |
| Maximum Holding Capacity (lbf) | 600.0 |
| Plunger Travel (in) | 1.5 |
| Imperial or Metric Product | Imperial |
| Maximum Holding Capacity (N) | 2670.0 |
| Weight (kg) | 0.41 |
| Plunger Travel (mm) | 38.1 |
| Product Series | 6004 |
| Toggle Lock Plus | Yes |
| Standard Material | Stainless Steel |
| Distributor Group | Workholding (Manual, Power and Hydraulic Clamps) |
| Spindle (Recommended) | 207943 |
| Product Function | Clamping |
| Plunger | Round |
| Plunger Thread | 5/16-18 |
| Mounting Nut (Supplied) | 606904 |
| Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 14.4:1 |
| Base Mounting Style | Flange |
| Product Type | Threaded Body |
| Spindle Included? | No |
