Brand: DESTACO

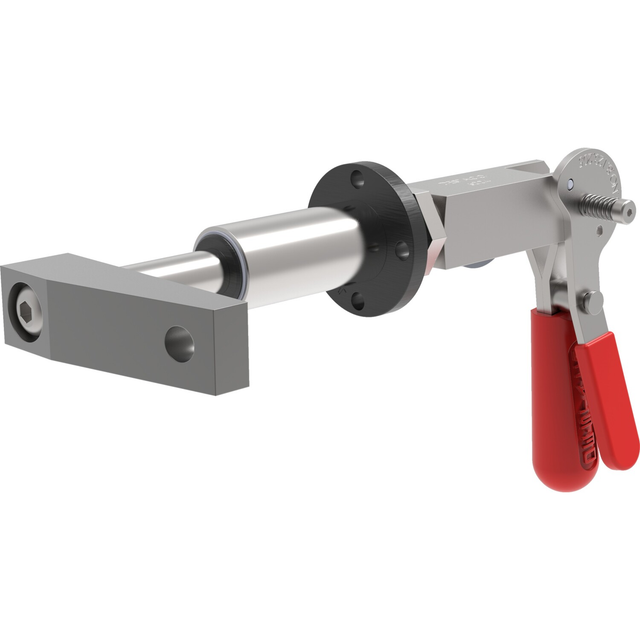

DESTACO 6004-R-SWR MANUAL SWING CLAMP WITH TOGGLE-LOCK PLUS
SKU: DE-STA-CO-6004-R-SWR
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
DESTACO®6004-R-SWR Toggle Lock Plus™ Version Manual Swing Clamp, Right-Hand
DESTACO 6004-R-SWR Toggle Lock Plus™ Version Manual Swing Clamp, Right-Hand combines proven technologies to deliver reliable performance for fixture building, testing, welding, and assembly operations across industrial, aerospace, and automotive applications. This right-hand toggle lock plus model features quick swing-and-clamp movement for increased productivity with both push and pull operation capability. Lock the clamp in two positions—retract or extend—and rely on the enclosed cam track for smooth, protected operation. A built-in detent holds the clamp open to prevent unwanted movement between cycles. Key Specifications: - Overall Length: 6.05 inches - Clamp Arm Length: 2.0 inches - Exerting Force: 323 lbf - Maximum Holding Capacity: 600 lbf - Height Under Clamp Arm: 2.19 inches - Plunger Travel: 1.5 inches - Stroke During Rotation: 0.87 inches - Plunger Thread: M8 - 360-Degree Rotatable Red Handle. Engineered for durability and ease of use, this manual swing clamp reduces setup time and improves workflow efficiency in demanding production environments.
Dimensions / Applications
- Length (in): 6.05
Technical Details
- Clamp Arm Length (in): 2.0
- Exerting Force (lbf): 323.0
- Height Under Clamp Arm (in): 2.19
- Maximum Holding Capacity (lbf): 600
- Plunger Height (in): 0.71
- Plunger Travel (in): 1.5
- Stroke during rotation (in): 0.87
- Plunger Thread: M8
- Supplied?: No
Product Information
- Brand: DESTACO
- Handle: 360 Degree Rotatable Handle
- Handle Color: Red
- Product Type: Manual Swing Clamp
- Spindle Included?: No
