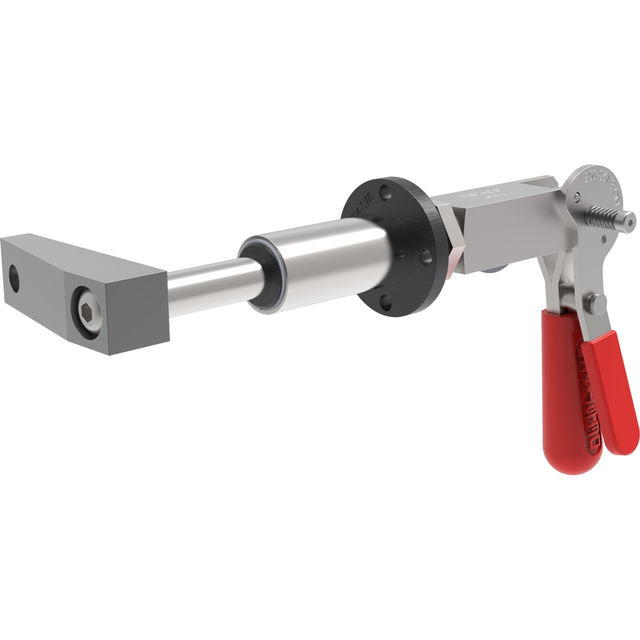

DESTACO 6004-R-SWL MANUAL SWING CLAMP WITH TOGGLE-LOCK PLUS
SKU: DE-STA-CO-6004-R-SWL
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
DESTACO® 6004-R-SWL Toggle Lock Plus™ Version Manual Swing Clamp, Left-Hand
The DESTACO® 6004-R-SWL Toggle Lock Plus™ Version Manual Swing Clamp, Left-Hand combines proven technologies for fast, reliable clamping in fixture building, testing, welding, and assembly operations across industrial, aerospace, and automotive applications. This left-hand model delivers quick swing-and-clamp action with push or pull operation and dual-position locking—clamp and lock in both retract and extend positions. The enclosed cam track design with detent hold prevents unwanted movement when open, boosting productivity and safety on the job. Key Specifications: - 323 lbf exerting force with 600 lbf maximum holding capacity - 2.0" clamp arm length, 2.19" height under arm - 1.5" plunger travel, 0.87" stroke during rotation - M8 plunger thread - 360-degree rotatable red handle for flexible positioning - Overall length: 6.05" Ideal for applications requiring repeatable, hands-free clamping with minimal operator fatigue. Built for durability in high-cycle production environments.
Dimensions / Applications
- Length (in): 6.05
Technical Details
- Clamp Arm Length (in): 2.0
- Exerting Force (lbf): 323.0
- Height Under Clamp Arm (in): 2.19
- Maximum Holding Capacity (lbf): 600
- Plunger Travel (in): 1.5
- Stroke during rotation (in): 0.87
- Plunger Thread: M8
- Supplied?: No
Product Information
- Brand: DESTACO
- Handle: 360 Degree Rotatable Handle
- Handle Color: Red
- Product Type: Manual Swing Clamp
- Spindle Included?: No
