Brand: DESTACO

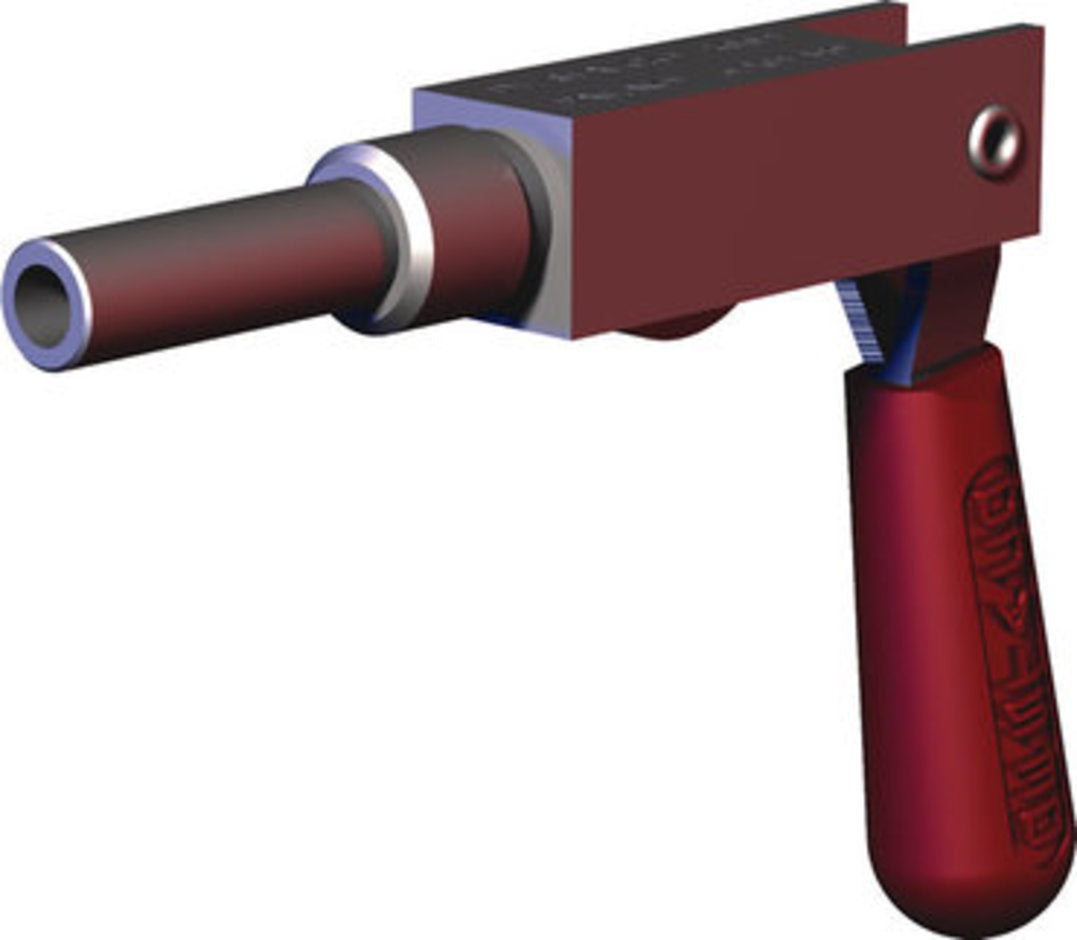

DESTACO 6004-MM 6004 WITH METRIC PLUNGER BODY
SKU: DE-STA-CO-6004-MM
MPN:
In-Stock: 26
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO 6004-MM 6004 WITH METRIC PLUNGER BODY
This straight line action clamp, the DESTACO 6004-MM 6004 WITH METRIC PLUNGER BODY, boasts an impressive 50% greater capacity than the 604 model. It features a solid body that can be locked in both the extended and retracted positions, and is available in both metric and inch threads. With a maximum holding capacity of 450 lbsf, plunger travel of 1.5 inches, and plunger height of 0.440 inches, this clamp is ideal for exerting a force of 14.4:1.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 6004-MM 6004 WITH METRIC PLUNGER BODY
Product Details
Our newest through-hole mounted straight line clamp. Has 50% greater capacity than model 604.
- Solid body
- Locks in both extended and retracted position
- Available in metric and inch threads
| Imperial or Metric Product | Metric |
| Maximum Holding Capacity (lbsf) | 450 |
| Plunger Travel (in) | 1.5 |
| Plunger Height (in) | 0.440 |
| Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 14.4:1 |
| Plunger Thread | M8 |
| Available | Yes |
| Standard Material | Steel |
| Toggle Lock Plus | No |
| Base Mounting Style | Flange |
| Plunger | Round |
| Spindle (Recommended) | 207203-M |
| Spindle Included? | No |
| Preferred Market | Global |
| Mounting Nut (Supplied) | 606104-M |
| Product Type | Threaded Body |
| Weight (lb) | 0.82 |
| Product Series Description | Straight Line Action Clamp |
| Product Function | Clamping |
| Product Family | Manual Clamping |
| Product Group | Straight-line Action Clamps |
