Brand: DESTACO

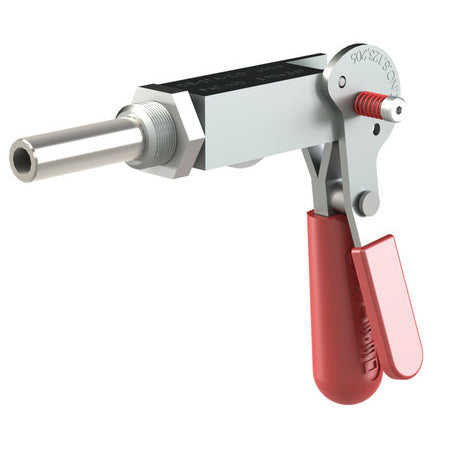

DESTACO 6002-RSS - 6002 STAINLESS STEEL CLAMPS STRAIGHT LINE ACTION WITH TOGGLE-LOCK PLUS
SKU: DE-STA-CO-6002-RSS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Introducing the Destaco 6002-RSS Straight Line Action Clamp, engineered to deliver robust clamping performance with the added convenience of a toggle lock plus feature, crafted from high-quality stainless steel for exceptional durability and corrosion resistance. Designed for imperial applications, these clamps offer a maximum holding capacity of 400.0 lbf (1780.0 N), ensuring reliable securing of workpieces during machining, assembly, and other operations. With a plunger travel of 0.75 inches (19.0 mm), these clamps provide precise and adjustable clamping for various workpiece sizes. The round plunger design ensures smooth operation, while the flange base mounting style simplifies installation. Active and supported, these clamps are ready to meet your workholding needs. Trust the Destaco 6002-RSS Straight Line Action Clamp to deliver reliable clamping performance in your imperial applications.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
| Weight (lb) | 0.55 |
| Plunger Travel (in) | 0.75 |
| Maximum Holding Capacity (lbf) | 400.0 |
| Plunger Travel (mm) | 19.0 |
| Maximum Holding Capacity (N) | 1780.0 |
| Imperial or Metric Product | Imperial |
| Weight (kg) | 0.25 |
| Product Series | 6002 |
| Spindle (Recommended) | 202943 |
| Plunger Thread | 1/4-20 |
| Distributor Group | Workholding (Manual, Power and Hydraulic Clamps) |
| Base Mounting Style | Flange |
| Plunger | Round |
| Standard Material | Stainless Steel |
| Spindle Included? | No |
| Product Type | Threaded Body |
| Mounting Nut (Supplied) | 602905 |
| Toggle Lock Plus | Yes |
| Product Function | Clamping |
| Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 20:1 |
