DESTACO 6002-R-SWR MANUAL SWING CLAMP WITH TOGGLE-LOCK PLUS

Brand: DESTACO

DESTACO 6002-R-SWR MANUAL SWING CLAMP WITH TOGGLE-LOCK PLUS

SKU: DE-STA-CO-6002-R-SWR
MPN: 6002-R-SWR

  • Save $22.39
Shipping calculated at checkout.
Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

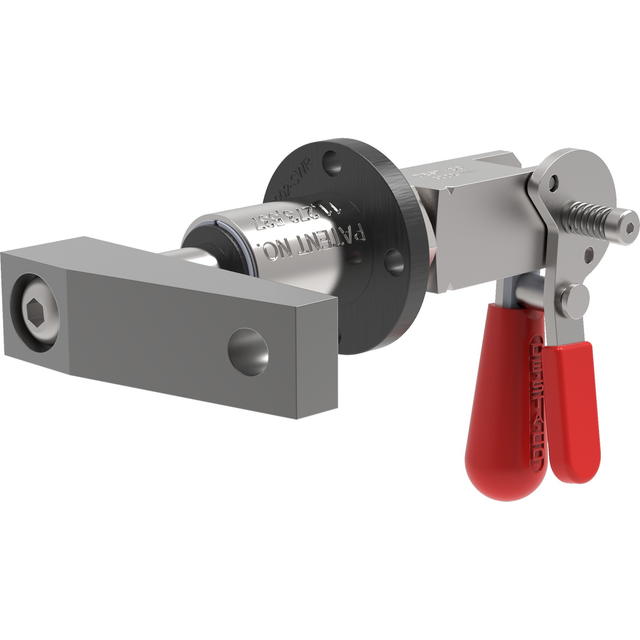

DESTACO® 6002-R-SWR Toggle Lock Plus™ Version Manual Swing Clamp, Right-Hand

The DESTACO® 6002-R-SWR Toggle Lock Plus™ Version Manual Swing Clamp, Right-Hand combine two existing DESTACO technologies to create an easy-to-use option for fixture building/testing, welding and assembly operations in the industrial, aerospace, and automotive markets. These models provide quick swing-and-clamp movement for increased productivity, push or pull operation, and can be locked in two positions. The new Manual Swing Clamps feature an enclosed cam track and can clamp and lock in both retract and extend positions. They also feature a detent that holds the clamp in the open position in order to prevent unwanted movement.

Technical Details

  • Clamp Arm Length (in): 1.49
  • Height Under Clamp Arm (in): 1.49
  • Maximum Holding Capacity (lbf): 400.0
  • Plunger Travel (in): 1.5
  • Stroke during rotation (in): 0.53
  • Plunger Thread: M8
  • Supplied?: No

Product Information

  • Brand: DESTACO
  • Handle: 360 Degree Rotatable Handle
  • Handle Color: Red
  • Product Type: Manual Swing Clamp
  • Spindle Included?: No
