Brand: DESTACO

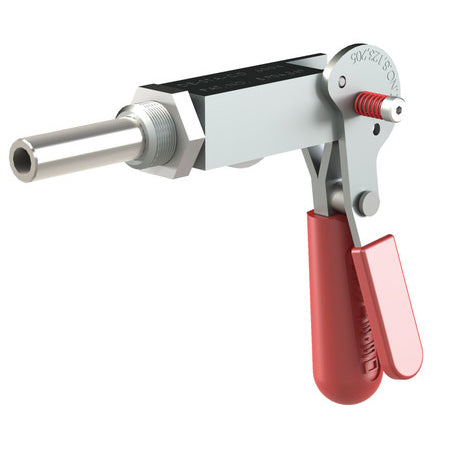

DESTACO 6002-MMRSS - 6002-MM STAINLESS STEEL WITH TOGGLE-LOCK PLUS RELEASE LEVER
SKU: DE-STA-CO-6002-MMRSS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Introducing the Destaco 6002-MMRSS Straight Line Action Clamp with Toggle Lock Plus - Metric - Stainless Steel, an advanced solution designed for durability and reliability in demanding industrial environments. Part of the 6000 series, these clamps are constructed from high-quality stainless steel, ensuring resistance to corrosion and longevity in harsh conditions. With a maximum holding capacity of 400.0 lbf (1780.0 N), they provide secure clamping performance for a wide range of applications. Featuring a plunger travel of 0.75 inches (19.0 mm), these clamps offer precise adjustment to accommodate various workpiece sizes. The Toggle Lock Plus feature adds an extra layer of security, ensuring that the clamp remains securely locked during operation. Despite their robust construction, these clamps are lightweight, weighing only 0.55 lbs (0.25 kg), making them easy to handle and install. The plunger thread is M6, suitable for metric applications, and the clamps come with a threaded body design. They do not include a spindle. Active and supported, these clamps are ready to meet your workholding needs. Trust the Destaco 6002-MMRSS Straight Line Action Clamp with Toggle Lock Plus - Metric - Stainless Steel to deliver exceptional clamping performance and reliability in your industrial operations.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
| Weight (lb) | 0.55 |
| Plunger Travel (in) | 0.75 |
| Maximum Holding Capacity (lbf) | 400.0 |
| Weight (kg) | 0.25 |
| Plunger Travel (mm) | 19.0 |
| Imperial or Metric Product | Metric |
| Maximum Holding Capacity (N) | 1780.0 |
| Toggle Lock Plus | Yes |
| Plunger | Round |
| Mounting Nut (Supplied) | 602905-M |
| Product Type | Threaded Body |
| Plunger Thread | M6 |
| Distributor Group | Workholding (Manual, Power and Hydraulic Clamps) |
| Spindle (Recommended) | 202943-M |
| Product Function | Clamping |
| Standard Material | Stainless Steel |
| Product Series | 6002 |
| Spindle Included? | No |
| Base Mounting Style | Flange |
| Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 20:1 |
