Brand: DESTACO

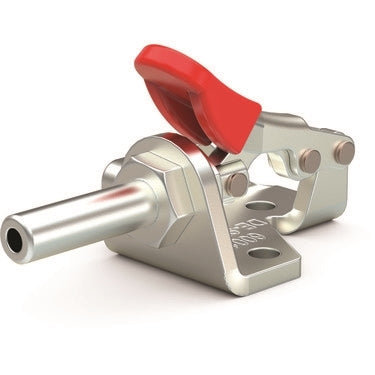

DESTACO 6001-MSS STRAIGHT LINE ACTION CLAMP
SKU: DE-STA-CO-6001-MSS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 6001-MSS STRAIGHT LINE ACTION TOGGLE CLAMP is designed for heavy-duty use, offering an impressive 50% increase in holding capacity compared to the 601 model, while maintaining the same compact size. With the ability to lock over-center in both extended and retracted positions, this toggle clamp is secure and reliable. It can also be side-mounted for added versatility. The mounting pattern is interchangeable with the 601 model. This stainless steel metric toggle clamp has a maximum holding capacity of 150 lbsf and offers a plunger travel of 0.63 inches and a plunger height of 0.500 inches. With an exerting force ratio of 14:1/25:1, it can easily handle any pushing or pulling task. Trust the DESTACO 6001-MSS for your toughest toggle clamping needs!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 6001-MSS STRAIGHT LINE ACTION CLAMP
Heavier duty version of model 601 with 50% more holding capacity while keeping the same envelope as the 601. Locks over-center in both extended and retracted positions provided the handle is allowed to fall below the mounting plane.
- The base can be side-mounted
- 50% more holding capacity than model 601.
- Mounting pattern interchangeable with model 601
Imperial or Metric Product | Metric |
Maximum Holding Capacity (lbsf) | 150 |
Plunger Travel (in) | 0.63 |
Plunger Height (in) | 0.500 |
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 14:1/25:1 |
Plunger Thread | M4 |
Standard Material | Stainless Steel |
Toggle Lock Plus | No |
Base Mounting Style | Flange |
Plunger | Round |
Spindle (Recommended) | 205208-M |
Spindle Included? | No |
Preferred Market | Global |
Product Type | Standard |
Weight (lb) | 0.11 |
Product Series Description | Straight Line Action Clamp |
Product Function | Clamping |
Product Family | Manual Clamping |
Product Group | Straight-line Action Clamps |
