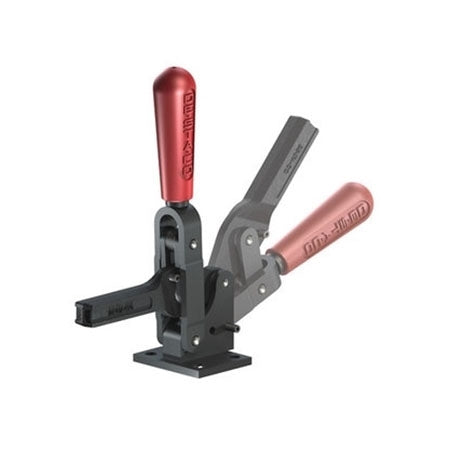

DESTACO 5910 - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS

Brand: DESTACO

DESTACO 5910 - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS

SKU: DE-STA-CO-5910
MPN: 5910

  • $74.29
    Unit price per
  • Save $5.73
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Get ready to experience the power and reliability of DESTACO's 5910 - 5000 Series Heavy Duty Vertical Handle Hold Down Clamps. Built with strength in mind, these clamps are designed to withstand the toughest conditions and provide extended life and durability. The high strength forged alloy steel clamping arm and hardened steel pivot pins and bushings ensure long-lasting performance. Plus, with a sleek black oxide finish, these toggle clamps are as visually appealing as they are functional. With a maximum holding capacity of 7,120 N and an opening angle of 132 degrees, these toggle clamps provide the strength and versatility you need. The height under the clamp arm is 50.5 mm (1.990 in) and the clamp bar and handle openings can be modified to suit your application requirements.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 5910 - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS

These heavy-duty hold-down clamps feature robust construction that provides extended life and durability. Solid clamping bars may be modified to suit application requirements. Three sizes to choose from with multiple mounting options.

  • High strength forged alloy steel clamping arm
  • Hardened steel pivot pins and bushings for long life
  • Black oxide finish
Maximum Holding Capacity (N) 7,120
Maximum Holding Capacity (lbsf) 1,600
Opening Angle (deg) 132
Height Under Clamp Arm (mm) 50.5
Height Under Clamp Arm (in) 1.990
Clamp Bar Opening (+10°) (degrees) 132
Handle Opening (+10°) 71
Standard Material High-Strength Forged Steel
Toggle Lock Plus No
Accommodates Workpiece Variation No
Base Mounting Style Flange
Clamp Arm Style Solid Bar
Handle Vertical
Service Environment Harsh/Dirty
Application - Welding Excellent/High
Application - Assembly Excellent/High
Application - Checking Fixtures Fair/Medium
Application - Machining Poor/Low
Application - Wood-Working Poor/Low
Application - Closures Poor/Low
Application - Food Processing Not Recommended
Duty Cycle 3
Product Type Heavy Duty
Weight (kg) 1.29
Weight (lb) 2.84
Product Series Description Vertical Clamp
