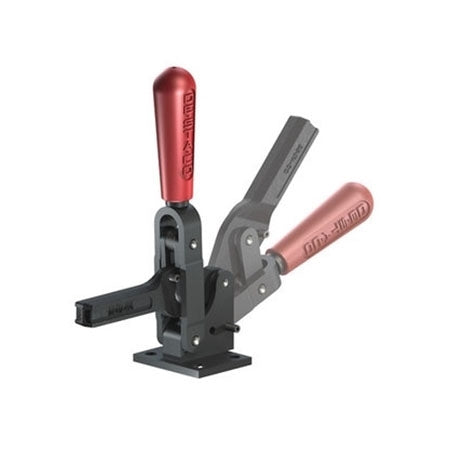

DESTACO 5905-B - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS

Brand: DESTACO

DESTACO 5905-B - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS

SKU: DE-STA-CO-5905-B
MPN: 5905-B

  • $57.29
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

DESTACO 5905-B - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS
These heavy duty hold down clamps feature robust construction that provides extended life and durability. Solid clamping bars may be modified to suit application requirements. Three sizes to choose from with multiple mounting options.
High strength forged alloy steel clamping arm
Hardened steel pivot pins and bushings for long life
Black oxide finish

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 5905-B - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS

These heavy-duty hold-down clamps feature robust construction that provides extended life and durability. Solid clamping bars may be modified to suit application requirements. Three sizes to choose from with multiple mounting options.

  • High strength forged alloy steel clamping arm
  • Hardened steel pivot pins and bushings for long life
  • Black oxide finish
Maximum Holding Capacity (N) 3,340
Maximum Holding Capacity (lbsf) 750
Opening Angle (deg) 135
Height Under Clamp Arm (mm) 32.1
Height Under Clamp Arm (in) 1.270
Clamp Bar Opening (+10°) (degrees) 135
Handle Opening (+10°) 70
Available Yes
Standard Material High-Strength Forged Steel
Toggle Lock Plus No
Accommodates Workpiece Variation No
Base Mounting Style Straight
Clamp Arm Style Solid Bar
Handle Vertical
Service Environment Harsh/Dirty
Application - Welding Excellent/High
Application - Assembly Excellent/High
Application - Checking Fixtures Fair/Medium
Application - Machining Poor/Low
Application - Wood-Working Poor/Low
Application - Closures Poor/Low
Application - Food Processing Not Recommended
Duty Cycle 3
Product Type Heavy Duty
Weight (kg) 0.37
Weight (lb) 0.82
Product Series Description Vertical Clamp
