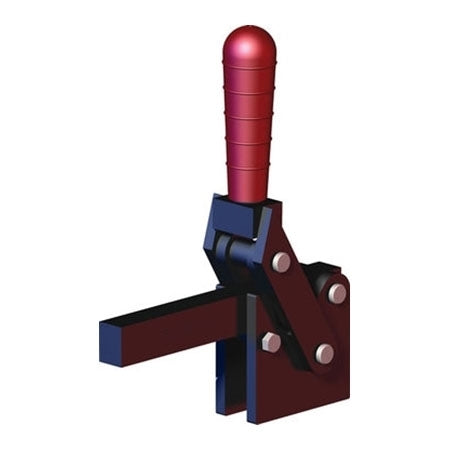

DESTACO 548 - VERTICAL HOLD-DOWN TOGGLE LOCKING CLAMP

Brand: DESTACO

DESTACO 548 - VERTICAL HOLD-DOWN TOGGLE LOCKING CLAMP

SKU: DE-STA-CO-548
MPN: 548

  • $153.03
    Unit price per
  • Save $9.97
Shipping calculated at checkout.

Only -6 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

DESTACO 548 - VERTICAL HOLD-DOWN TOGGLE LOCKING CLAMP

The DESTACO 548 - VERTICAL HOLD-DOWN TOGGLE LOCKING CLAMP is the perfect tool for tackling tough, heavy-duty work. It features large bar guides for increased lateral support, as well as hardened steel bushings and pins for long-lasting durability. The forged hold down bar can even be cut, machined, or welded to suit your specific needs.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 548 - VERTICAL HOLD-DOWN TOGGLE LOCKING CLAMP

Designed for tough, heavy-duty work holding

  • Large bar guides for greater lateral support
  • Hardened steel bushings and pins for long life
  • Replaceable pins
  • Forged hold down bar can be cut, machined, or welded
  • Bar opens 199 degrees to clear work area
Maximum Holding Capacity (N) 11,100
Maximum Holding Capacity (lbsf) 2,500
Clamp Arm Length (mm) 108.0
Clamp Arm Length (in) 4.250
Height Under Clamp Arm (mm) 56.9
Height Under Clamp Arm (in) 2.240
Clamp Bar Opening (+10°) (degrees) 199
Handle Opening (+10°) 129
Available Yes
Standard Material Steel
Toggle Lock Plus No
Accomodates Workpiece Variation No
Base Mounting Style Straight
Clamp Arm Style Solid Bar
Handle Vertical
Service Environment Harsh/Dirty
Application - Welding Excellent/High
Application - Assembly Excellent/High
Application - Checking Fixtures Excellent/High
Application - Machining Poor/Low
Application - Wood-Working Poor/Low
Application - Closures Poor/Low
Application - Food Processing Not Recommended
Duty Cycle 3
Product Type Heavy Duty
Weight (kg) 2.40
Weight (lb) 5.29
Product Series Description Vertical Clamp
