Brand: DESTACO

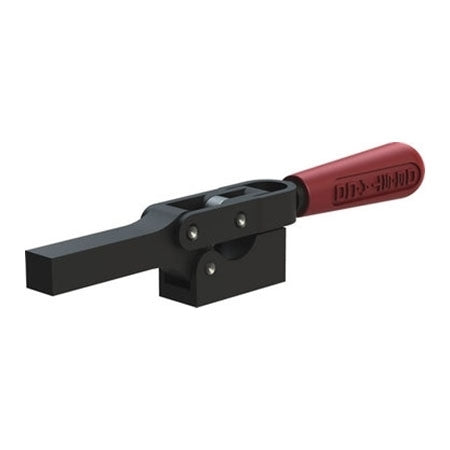

DESTACO 5310-B - 5000 SERIES HEAVY DUTY HORIZONTAL HOLD DOWN CLAMPS
SKU: DE-STA-CO-5310-B
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Passionately believe in the value of DESTACO 5310-B - 5000 SERIES HEAVY DUTY HORIZONTAL HOLD DOWN TOGGLE CLAMPS, designed to provide extended life and durability with their low profile and robust construction. These clamps feature a solid clamping bar that can be easily modified for your specific application. The high strength forged alloy steel clamping arm, hardened steel pivot pins and bushings, and black oxide finish ensure maximum holding capacity of 5,780 N (1,300 lbsf) and an opening angle of 90 degrees. The height under the clamp arm is 33.3 mm (1.310 in) and the clamp bar and handle have a 90 degree and 69 degree opening respectively. Made of standard steel, these toggle clamps are a reliable choice for your heavy duty needs.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 5310-B - 5000 SERIES HEAVY DUTY HORIZONTAL HOLD DOWN CLAMPS
These low profile heavy duty feature robust construction for extended life and durability. Solid clamping bars may be modified to suit your application.
- High strength forged alloy steel clamping arm
- Hardened steel pivot pins and bushings for long life
- Black oxide finish
Maximum Holding Capacity (N) | 5,780 |
Maximum Holding Capacity (lbsf) | 1,300 |
Opening Angle (deg) | 90 |
Height Under Clamp Arm (mm) | 33.3 |
Height Under Clamp Arm (in) | 1.310 |
Clamp Bar Opening (+10°) (degrees) | 90 |
Handle Opening (+10°) | 69 |
Standard Material | Steel |
Toggle Lock Plus | No |
Accommodates Workpiece Variation | No |
Base Mounting Style | Solid |
Clamp Arm Style | Solid Bar |
Handle | Horizontal |
Service Environment | Harsh/Dirty |
Application - Welding | Excellent/High |
Application - Assembly | Excellent/High |
Application - Checking Fixtures | Fair/Medium |
Application - Machining | Poor/Low |
Application - Wood-Working | Poor/Low |
Application - Closures | Poor/Low |
Application - Food Processing | Not Recommended |
Duty Cycle | 3 |
Product Type | Heavy Duty |
Weight (kg) | 1.02 |
Weight (lb) | 2.25 |
Product Series Description | Horizontal Clamp |
