Brand: DESTACO

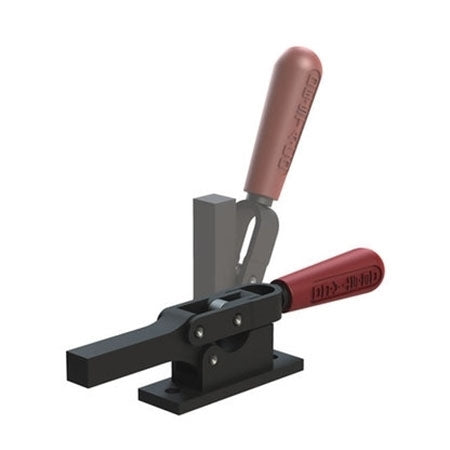

DESTACO 5305-B - 5000 SERIES HEAVY DUTY HORIZONTAL HOLD DOWN CLAMPS

SKU: DE-STA-CO-5305-B
MPN: 5305-B

$55.96
Unit price per
Save $4.33

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO 5305-B - 5000 SERIES HEAVY DUTY HORIZONTAL HOLD DOWN CLAMPS boast a sturdy construction, ensuring a long lifespan and unmatched durability. The solid clamping bars can be easily modified to fit your specific application needs. These clamps offer versatility and peace of mind during use. The clamping arm is forged from high strength alloy steel and features hardened steel pivot pins and bushings for maximum durability. Finished with a sleek black oxide coating, this clamp has a maximum holding capacity of 2,670 N (600 lbsf) and an opening angle of 90 degrees. Designed with precision and efficiency in mind, this clamp has a low profile height of 28.5 mm (1.120 in) under the clamp arm, and a 90 degree clamp bar and handle opening. Made with only the highest quality steel materials, these toggle clamps are guaranteed to last!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 5305-B - 5000 SERIES HEAVY DUTY HORIZONTAL HOLD DOWN CLAMPS

These low profile heavy duty feature robust construction for extended life and durability. Solid clamping bars may be modified to suit your application. Three sizes with multiple mounting options as well as Toggle Lock Plus for added safety (-R versions).

High strength forged alloy steel clamping arm
Hardened steel pivot pins and bushings for long life
Black oxide finish

Maximum Holding Capacity (N)	2,670
Maximum Holding Capacity (lbsf)	600
Opening Angle (deg)	90
Height Under Clamp Arm (mm)	28.5
Height Under Clamp Arm (in)	1.120
Clamp Bar Opening (+10°) (degrees)	90
Handle Opening (+10°)	69
Standard Material	Steel
Toggle Lock Plus	No
Accommodates Workpiece Variation	No
Base Mounting Style	Solid
Clamp Arm Style	Solid Bar
Handle	Horizonal
Service Environment	Harsh/Dirty
Application - Welding	Excellent/High
Application - Assembly	Excellent/High
Application - Checking Fixtures	Fair/Medium
Application - Machining	Poor/Low
Application - Wood-Working	Poor/Low
Application - Closures	Poor/Low
Application - Food Processing	Not Recommended
Duty Cycle	3
Product Type	Heavy Duty
Weight (kg)	0.37
Weight (lb)	0.82
Product Series Description	Horizontal Clamp
