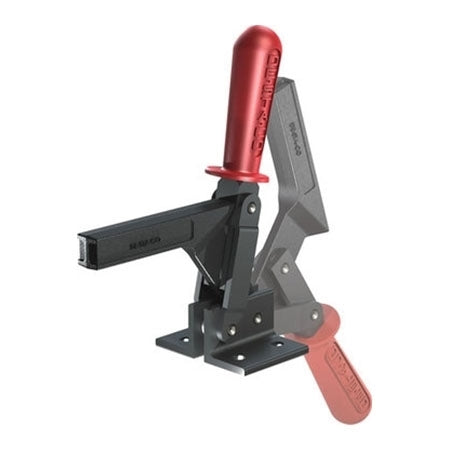

DESTACO 5110 - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS

Brand: DESTACO

DESTACO 5110 - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS

SKU: DE-STA-CO-5110
MPN: 5110

  • $60.99
    Unit price per
  • Save $4.71
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Experience the enhanced strength and durability of DESTACO 5110, 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS. These clamps are designed for longevity and boast a high bar for added clearance. The low pivot point ensures strong perpendicular clamping forces. Additionally, the solid clamping bars can be customized for your specific needs. Crafted with high-strength forged steel, these clamps also feature hardened steel pivot pins and bushings for extended use. With a large clearance under the clamping bar and a maximum holding capacity of 5,100 N (or 1,150 lbsf), these clamps are a reliable choice. The 74 degree opening angle and 85.6mm (or 3.370 inches) height under the clamp arm make these clamps versatile and suitable for a variety of applications. Don't settle for less - choose the quality and strength of DESTACO toggle clamps.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 5110 - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS

These heavy-duty clamps feature robust construction for extended life and durability. The high bar provides extra clearance. The low pivot point results in near perpendicular clamping forces. Solid clamping bars may be modified to suit your application.

  • High strength forged alloy steel clamping arm
  • Hardened steel pivot pins and bushings for long life
  • Large clearance under clamping bar
Maximum Holding Capacity (N) 5,100
Maximum Holding Capacity (lbsf) 1,150
Opening Angle (deg) 74
Height Under Clamp Arm (mm) 85.6
Height Under Clamp Arm (in) 3.370
Clamp Bar Opening (+10°) (degrees) 74
Handle Opening (+10°) 138
Standard Material High-Strength Forged Steel
Toggle Lock Plus No
Accommodates Workpiece Variation No
Base Mounting Style Flange
Clamp Arm Style Solid Bar
Handle Vertical
Service Environment Harsh/Dirty
Application - Welding Excellent/High
Application - Assembly Excellent/High
Application - Checking Fixtures Fair/Medium
Application - Machining Poor/Low
Application - Wood-Working Poor/Low
Application - Closures Poor/Low
Application - Food Processing Not Recommended
Duty Cycle 3
Product Type Heavy Duty
Weight (kg) 1.35
Weight (lb) 2.98
Product Series Description Vertical Clamp
