Brand: DESTACO

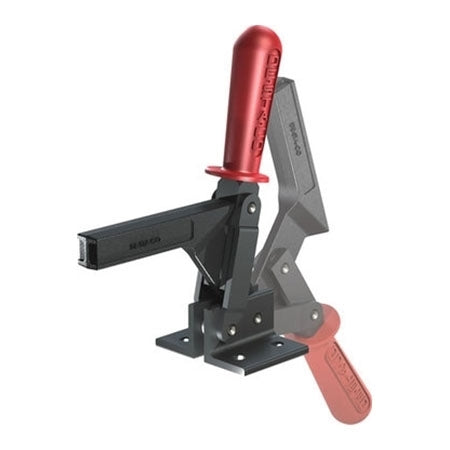

DESTACO 5105-R - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS
SKU: DE-STA-CO-5105-R
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing DESTACO 5105-R - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN TOGGLE CLAMPS, engineered for exceptional performance and built to last. With robust construction, these clamps are designed to withstand the toughest jobs. The high bar allows for added clearance, while the low pivot point delivers near-perpendicular clamping forces. Made from high-strength forged alloy steel, the clamping arm is incredibly strong and durable. The hardened steel pivot pins and bushings ensure a long lifespan, while the black oxide finish adds a sleek look. Featuring Toggle Lock Plus and a maximum holding capacity of 3,100N (700 lbsf), these clamps provide reliable and secure holds. The opening angle of 89° and height of 64.6mm (2.540 inches) under the clamp arm make them versatile and easy to use. Experience the power and precision of these heavy-duty toggle clamps.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 5105-R - 5000 SERIES HEAVY DUTY VERTICAL HANDLE HOLD DOWN CLAMPS
These heavy-duty clamps feature robust construction for extended life and durability. The high bar provides extra clearance. The low pivot point results in near perpendicular clamping forces. Solid clamping bars may be modified to suit your application.
- High strength forged alloy steel clamping arm
- Hardened steel pivot pins and bushings for long life
- Black oxide finish
- Large clearance under clamping bar
- With Toggle Lock Plus
Maximum Holding Capacity (N) | 3,100 |
Maximum Holding Capacity (lbsf) | 700 |
Opening Angle (deg) | 89 |
Height Under Clamp Arm (mm) | 64.6 |
Height Under Clamp Arm (in) | 2.540 |
Clamp Bar Opening (+10°) (degrees) | 89 |
Handle Opening (+10°) | 159 |
Standard Material | High-Strength Forged Steel |
Toggle Lock Plus | Yes |
Accommodates Workpiece Variation | No |
Base Mounting Style | Flange |
Clamp Arm Style | Solid Bar |
Handle | Vertical |
Service Environment | Harsh/Dirty |
Application - Welding | Excellent/High |
Application - Assembly | Excellent/High |
Application - Checking Fixtures | Fair/Medium |
Application - Machining | Poor/Low |
Application - Wood-Working | Poor/Low |
Application - Closures | Poor/Low |
Application - Food Processing | Not Recommended |
Duty Cycle | 3 |
Product Type | Heavy Duty |
Weight (kg) | 0.50 |
Weight (lb) | 1.10 |
Product Series Description | Vertical Clamp |
