Brand: DESTACO

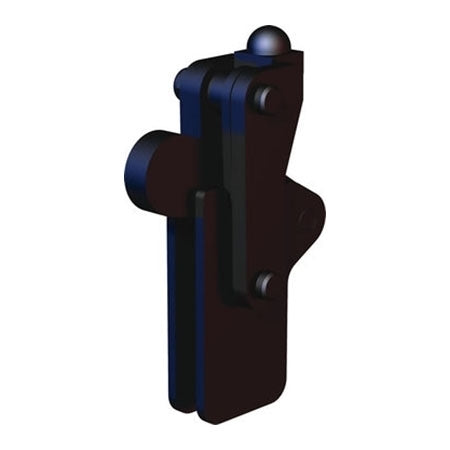

DESTACO 506-MLB - VERTICAL HOLD-DOWN TOGGLE LOCKING CLAMP

SKU: DE-STA-CO-506-MLB
MPN: 506-MLB

$315.02
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Exceed design specifications with DESTACO 506-MLB - VERTICAL HOLD-DOWN TOGGLE LOCKING CLAMP. Fully customizable for any application, these heavy-duty clamps provide ultimate versatility for precise positioning of the base, handle, and clamp arm. Featuring a modular design, hardened pivot pins and bushings, and a weldable clamping arm, these clamps open up to 200 degrees to easily clear the work area. These toggle clamps have a maximum holding capacity of 22,500 N (5,000 lbsf) and a 35.1mm (1.380 in) clamp arm length, making them a top choice for all your industrial needs. Upgrade now to the forged alloy steel standard material and experience the power of DESTACO.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 506-MLB - VERTICAL HOLD-DOWN TOGGLE LOCKING CLAMP

These heavy-duty clamps can be completely configured to meet the specifications of the application. They allow the designer complete flexibility to position the base, handle, and clamp arm

Modular design
Hardened pivot pins and bushings
Weldable clamping arm
The bar opens 200 degrees to clear the work area
Pipe handle, mounting base, and bar options available

Maximum Holding Capacity (N)	22,500
Maximum Holding Capacity (lbsf)	5,000
Clamp Arm Length (mm)	35.1
Clamp Arm Length (in)	1.380
Height To Top Of Clamp Arm (mm)	164.1
Height To Top Of Clamp Arm (in)	6.460
Clamp Bar Opening (+10°) (degrees)	200
Standard Material	Forged alloy steel
Toggle Lock Plus	No
Accommodates Workpiece Variation	No
Base Mounting Style	Long
Clamp Arm Style	Weldable
Handle	Vertical
Service Environment	Harsh/Dirty
Application - Welding	Excellent/High
Application - Assembly	Excellent/High
Application - Checking Fixtures	Fair/Medium
Application - Machining	Fair/Medium
Application - Wood-Working	Poor/Low
Application - Closures	Poor/Low
Application - Food Processing	Not Recommended
Duty Cycle	3
Product Type	Modular Hold-Down Clamps
Weight (kg)	2.80
Weight (lb)	6.17
Product Series Description	Vertical Clamp
