Brand: DESTACO

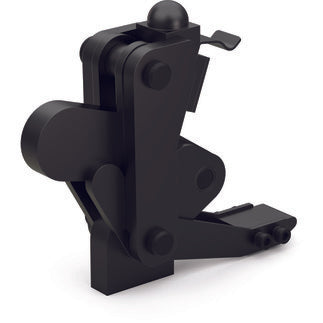

DESTACO 506-MBLSC HOLD DOWN ACTION CLAMP
SKU: DE-STA-CO-506-MBLSC
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 506-MBLSC HOLD DOWN ACTION TOGGLE CLAMP offers complete configurability to meet any application's needs. With a modular design, hardened pivot pins and bushings, and a weldable clamping arm, these heavy-duty clamps provide flexibility and durability. The bar can open up to 200 degrees for easy access to the work area. With a maximum holding capacity of 5,000 lbs, a clamp arm length of 1.27 inches, a height to top of clamp arm of 4.76 inches, and a clamp bar opening of 200 degrees, this toggle clamp is made from high-quality forged alloy steel.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 506-MBLSC HOLD DOWN ACTION CLAMP
These heavy-duty clamps can be completely configured to meet the specifications of the application. They allow the designer complete flexibility to position the base, handle, and clamp arm
- Modular design
- Hardened pivot pins and bushings
- Weldable clamping arm
- The bar opens 200 degrees to clear the work area
- Pipe handle, mounting base, and bar options available
| Maximum Holding Capacity (lb) | 5,000 |
| Clamp Arm Length (in) | 1.27 |
| Height To Top Of Clamp Arm (in) | 4.76 |
| Clamp Bar Opening (+10°) (degrees) | 200 |
| Weight (lb) | 6.17 |
| Standard Material | Forged alloy steel |
| Toggle Lock Plus | No |
| Accommodates Workpiece Variation | No |
| Base Mounting Style | swivel with locking spring clip |
| Clamp Arm Style | weldable |
| Handle | Vertical |
| Service Environment | Harsh/Dirty |
| Application - Welding | Excellent/High |
| Application - Assembly | Excellent/High |
| Application - Checking Fixtures | Fair/Medium |
| Application - Machining | Fair/Medium |
| Application - Wood-Working | Poor/Low |
| Application - Closures | Poor/Low |
| Application - Food Processing | Not Recommended |
| Duty Cycle | 3 |
| Product Type | Modular Hold-Down Clamps |
