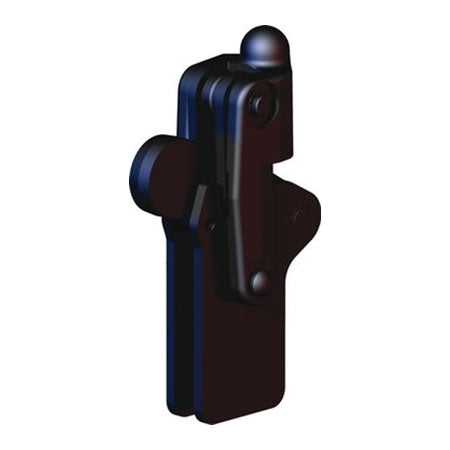

DESTACO 505-MLB - VERTICAL HOLD-DOWN TOGGLE LOCKING CLAMP

Brand: DESTACO

DESTACO 505-MLB - VERTICAL HOLD-DOWN TOGGLE LOCKING CLAMP

SKU: DE-STA-CO-505-MLB
MPN: 505-MLB

  • $193.22
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

DESTACO 505-MLB

The DESTACO 505-MLB - VERTICAL HOLD-DOWN TOGGLE LOCKING CLAMP is a versatile and powerful tool that can be fully customized to fit the specific needs of any application. With its modular design, hardened pivot pins and bushings, and weldable clamping arm, this clamp offers maximum flexibility and durability.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 505-MLB - VERTICAL HOLD-DOWN TOGGLE LOCKING CLAMP

These heavy-duty clamps can be completely configured to meet the specifications of the application. They allow the designer complete flexibility to position the base, handle, and clamp arm

  • Modular design
  • Hardened pivot pins and bushings
  • Weldable clamping arm
  • The bar opens 200 degrees to clear the work area
  • Pipe handle, mounting base, and bar options available
Maximum Holding Capacity (N) 11,000
Maximum Holding Capacity (lbsf) 2,400
Clamp Arm Length (mm) 29.0
Clamp Arm Length (in) 1.140
Height To Top Of Clamp Arm (mm) 134.4
Height To Top Of Clamp Arm (in) 5.290
Clamp Bar Opening (+10°) (degrees) 200
Available Yes
Standard Material Forged alloy steel
Toggle Lock Plus No
Accomodates Workpiece Variation No
Base Mounting Style Long
Clamp Arm Style Weldable
Handle Vertical
Service Environment Harsh/Dirty
Application - Welding Excellent/High
Application - Assembly Excellent/High
Application - Checking Fixtures Fair/Medium
Application - Machining Fair/Medium
Application - Wood-Working Poor/Low
Application - Closures Poor/Low
Application - Food Processing Not Recommended
Duty Cycle 3
Product Type Modular Hold-Down Clamps
Weight (kg) 1.50
Weight (lb) 3.31
Product Series Description Vertical Clamp
