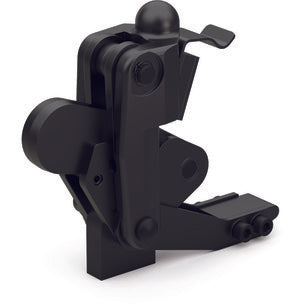

DESTACO 505-MBLSC - 505-MB WITH LSC BRACKET

Brand: DESTACO

DESTACO 505-MBLSC - 505-MB WITH LSC BRACKET

SKU: DE-STA-CO-505-MBLSC
MPN: 505-MBLSC

  • $206.02
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO 505-MBLSC - 505-MB WITH LSC BRACKET TOGGLE CLAMP offers complete flexibility for customizing to fit any application specifications. Its durable design includes hardened pivot pins and bushings, as well as a weldable clamping arm. With a 200 degree opening to clear the workspace, its maximum holding capacity is 2,400 lbsf and the clamp arm measures 0.990 inches. The height to the top of the clamp arm is 3.890 inches and the clamp bar opens at a range of 200 degrees. Crafted from forged alloy steel for optimal strength and reliability.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 505-MBLSC - 505-MB WITH LSC BRACKET

These heavy-duty clamps can be completely configured to meet the specifications of the application. They allow the designer complete flexibility to position the base, handle, and clamp arm

  • Modular design
  • Hardened pivot pins and bushings
  • Weldable clamping arm
  • The bar opens 200 degrees to clear the work area
  • Pipe handle, mounting base, and bar options available
Maximum Holding Capacity (lbsf) 2,400
Clamp Arm Length (in) 0.990
Height To Top Of Clamp Arm (in) 3.890
Clamp Bar Opening (+10°) (degrees) 200
Standard Material Forged alloy steel
Toggle Lock Plus No
Accommodates Workpiece Variation No
Base Mounting Style Swivel with locking spring clip
Clamp Arm Style Weldable
Handle Vertical
Service Environment Harsh/Dirty
Application - Welding Excellent/High
Application - Assembly Excellent/High
Application - Checking Fixtures Fair/Medium
Application - Machining Fair/Medium
Application - Wood-Working Poor/Low
Application - Closures Poor/Low
Application - Food Processing Not Recommended
Duty Cycle 3
Product Type Modular Hold-Down Clamps
Weight (lb) 3.31
Product Series Description Vertical Clamp
Product Function Clamping
Product Family Manual Clamping
Product Group Hold Down Clamps
