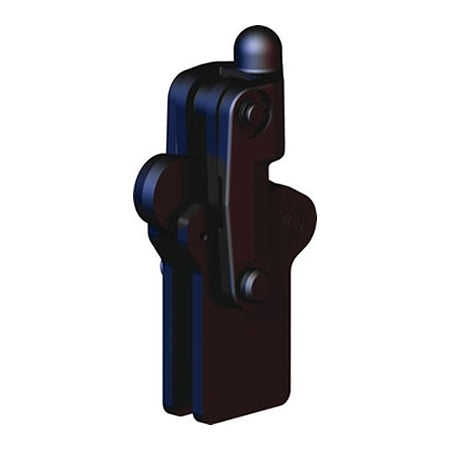

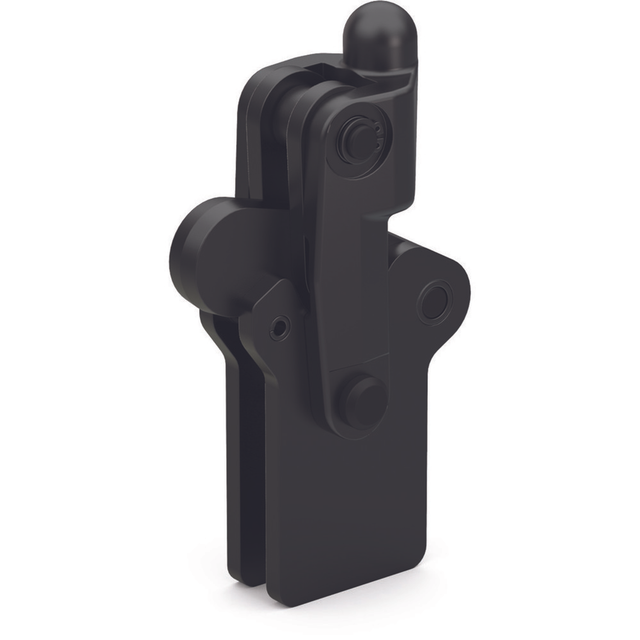

DESTACO 503-MLB HOLD DOWN ACTION CLAMP

Brand: DESTACO

DESTACO 503-MLB HOLD DOWN ACTION CLAMP

SKU: DE-STA-CO-503-MLB
MPN: 503-MLB

  • $149.78
    Unit price per
Shipping calculated at checkout.

Only -8 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Unleash the full potential of your application with the DESTACO 503-MLB HOLD DOWN ACTION TOGGLE CLAMP. These robust clamps offer complete customization options and a maximum holding capacity of 1500 lbs, granting you the freedom to precisely position the base, handle, and clamp arm. With a 200 degree opening, they easily clear the work area, and come with a variety of handle, base, and bar options to fit your needs. Made of forged alloy steel, weighing only 1.76 lbs, and with a clamp arm length of 0.53 inches, this is the ultimate solution for all your heavy-duty toggle clamping needs.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 503-MLB HOLD DOWN ACTION CLAMP

These heavy-duty clamps can be completely configured to meet the specifications of the application. They allow the designer complete flexibility to position the base, handle, and clamp arm

  • 1500 lb. Capacity
  • The bar opens 200 degrees to clear the work area
  • Pipe handle, mounting base, and bar options available
Maximum Holding Capacity (lb) 1,500
Clamp Arm Length (in) 0.53
Height To Top Of Clamp Arm (in) 3.92
Clamp Bar Opening (+10°) (degrees) 200
Weight (lb) 1.76
Standard Material Forged alloy steel
Toggle Lock Plus No
Accommodates Workpiece Variation No
Base Mounting Style long
Clamp Arm Style weldable
Handle Vertical
Service Environment Harsh/Dirty
Application - Welding Excellent/High
Application - Assembly Excellent/High
Application - Checking Fixtures Fair/Medium
Application - Machining Fair/Medium
Application - Wood-Working Poor/Low
Application - Closures Poor/Low
Application - Food Processing Not Recommended
Duty Cycle 3
Product Type Modular Hold-Down Clamps
