Brand: DESTACO

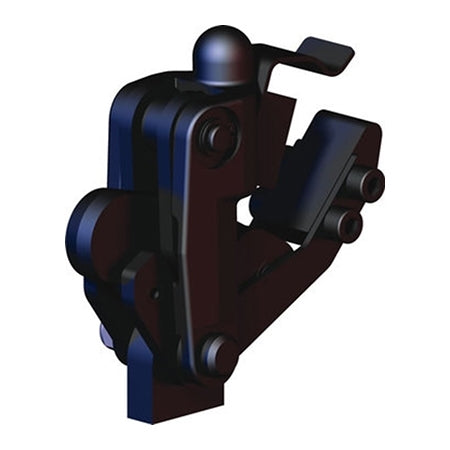

DESTACO 503-MBLSC HOLD DOWN ACTION CLAMP
SKU: DE-STA-CO-503-MBLSC
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 503-MBLSC HOLD DOWN ACTION TOGGLE CLAMP is a versatile and powerful tool that can be tailored to fit any application. With its 1500 lb. capacity, 200- degree bar opening, and various handle, base, and bar options, this heavy-duty toggle clamp provides ultimate flexibility for any design. Crafted from forged alloy steel for maximum holding capacity, it stands at 2.75 inches in height with a 0.53 inch clamp arm length.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 503-MBLSC HOLD DOWN ACTION CLAMP
These heavy-duty clamps can be completely configured to meet the specifications of the application. They allow the designer complete flexibility to position the base, handle, and clamp arm
- 1500 lb. Capacity
- The bar opens 200 degrees to clear the work area
- Pipe handle, mounting base, and bar options available
| Maximum Holding Capacity (lb) | 1,500 |
| Clamp Arm Length (in) | 0.53 |
| Height To Top Of Clamp Arm (in) | 2.75 |
| Clamp Bar Opening (+10°) (degrees) | 200 |
| Weight (lb) | 1.76 |
| Standard Material | Forged alloy steel |
| Toggle Lock Plus | No |
| Accommodates Workpiece Variation | No |
| Base Mounting Style | swivel with locking spring clip |
| Clamp Arm Style | weldable |
| Handle | Vertical |
| Service Environment | Harsh/Dirty |
| Application - Welding | Excellent/High |
| Application - Assembly | Excellent/High |
| Application - Checking Fixtures | Fair/Medium |
| Application - Machining | Fair/Medium |
| Application - Wood-Working | Poor/Low |
| Application - Closures | Poor/Low |
| Application - Food Processing | Not Recommended |
| Duty Cycle | 3 |
| Product Type | Modular Hold-Down Clamps |
