Brand: DESTACO

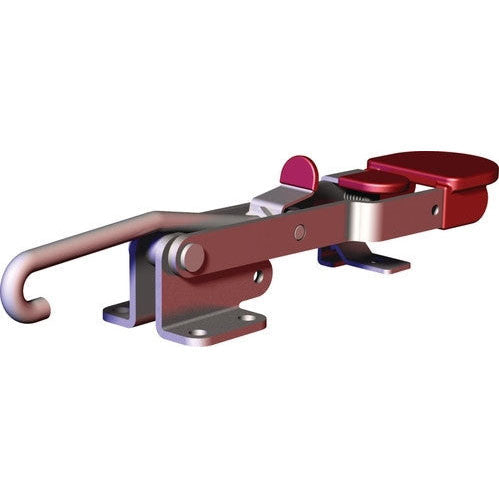

DESTACO 371-RSS J-HOOK, ONE HANDED PULL ACTION LATCH CLAMP
SKU: DE-STA-CO-371-RSS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO 371-RSS J-HOOK pull action latch toggle clamp, the ultimate one-handed pull action latch clamp for all your latching needs! Our patented Thumb Control Lever allows for effortless operation, while the threaded pull bar and J-Hook ensure easy adjustments. With a maximum holding capacity of 750 lbsf and a drawing movement of 5.440 inches, you can trust this stainless steel toggle clamp to secure your valuable materials. Plus, with a 36:1 Ef:Af force ratio and a maximum hook adjustment of 0.810 inches, you'll have total control and precision. Upgrade to the DESTACO 371-RSS J-HOOK TOGGLE CLAMP today and experience the power of one-handed latching!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 371-RSS J-HOOK, ONE-HANDED PULL ACTION LATCH CLAMP
Our line of pull action latch clamps is excellent for many types of latching operations. The pull bar is threaded for easy adjustment.
- Supplied with threaded J-Hook for easy adjustment
- Patented Thumb Control Lever provides one-handed operation
- With Toggle Lock Plus
- Longer hook lengths available
Maximum Holding Capacity (lbsf) | 750 |
Drawing Movement (in) | 5.440 |
Max Hook Adjustment (in) | 0.810 |
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 36:1 |
Standard Material | Stainless Steel |
Toggle Lock Plus | Yes |
Base Mounting Style | Flange |
Hook Type | J-Hook |
Replacement Hook Assembly | 371915 |
Product Type | Standard |
Weight (lb) | 1.87 |
Product Series Description | Pull Action Latch Clamp |
Product Function | Clamping |
Product Family | Manual Clamping |
Product Group | Pull-action Latch Clamps |
