Brand: DESTACO

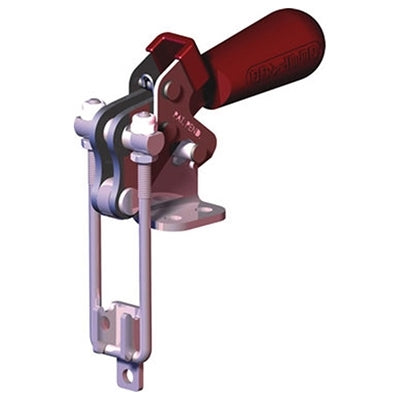

DESTACO 344-SS LARGE VERTICAL LATCH CLAMP

SKU: DE-STA-CO-344-SS
MPN: 344-SS

$95.54
Unit price per
Save $7.39

Shipping calculated at checkout.

In-Stock: 24

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

The DESTACO 344-SS LARGE VERTICAL LATCH TOGGLE CLAMP is designed to be mounted perpendicular to the surface and is perfect for latching on molds, doors, lids, access covers, drums, containers, and vessels. Made with high-quality stainless steel, it comes with threaded U-hooks for easy adjustment and a latch plate. Its patented Thumb Control Lever allows for effortless one-handed operation, while optional hook lengths are available. With a maximum holding capacity of 2,000 lbsf, it offers a drawing movement of 2.480 inches and a max hook adjustment of 1.260 inches. The clamp has a force ratio of 45:1 and is made of durable stainless steel material.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 344-SS LARGE VERTICAL LATCH CLAMP

The clamp is mounted perpendicular to the latch surface. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels

Stainless Steel
Supplied with threaded U-hooks for easy adjustment
Latch plate included
Patented Thumb Control Lever provides one-handed operation
Optional hook lengths available

Maximum Holding Capacity (lbsf)	2,000
Drawing Movement (in)	2.480
Max Hook Adjustment (in)	1.260
Ef:Af Exerting Force: Applied Force ((pushing/pulling))	45:1
Standard Material	Stainless Steel
Toggle Lock Plus	No
Base Mounting Style	Flange
Hook Type	U-Hook (Vertical)
Latch Plate	344901
Latch Plate Supplied?	Yes
Replacement Hook Assembly	344915
Product Type	Standard
Weight (lb)	1.50
Product Series Description	Pull Action Latch Clamp
Product Function	Clamping
Product Family	Manual Clamping
Product Group	Pull-action Latch Clamps
