Brand: DESTACO

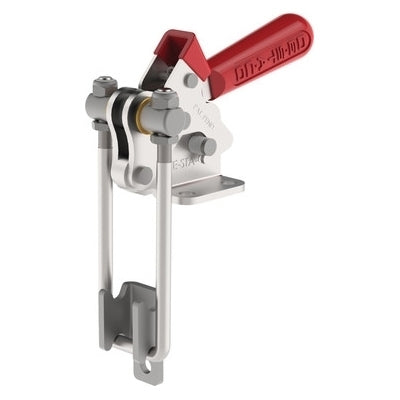

DESTACO 344-RSS U-HOOK ONE HANDED PULL ACTION LATCH CLAMP
SKU: DE-STA-CO-344-RSS
MPN:
In-Stock: 24
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO 344-RSS U-HOOK ONE HANDED PULL ACTION LATCH CLAMP*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 344-RSS U-HOOK ONE-HANDED PULL ACTION LATCH CLAMP
The clamp is mounted perpendicular to the latch surface. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels
- Supplied with threaded U-hooks for easy adjustment
- Latch plate included
- With Toggle Lock Plus
- Patented Thumb Control Lever provides one-handed operation
- Optional hook lengths available
Maximum Holding Capacity (lbsf) | 2,000 |
Drawing Movement (in) | 2.460 |
Max Hook Adjustment (in) | 1.170 |
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 45:1 |
Available | Yes |
Standard Material | Stainless Steel |
Toggle Lock Plus | Yes |
Base Mounting Style | Flange |
Hook Type | U-Hook (Vertical) |
Latch Plate | 344101 |
Latch Plate Supplied? | Yes |
Replacement Hook Assembly | 344915 |
Product Type | Standard |
Weight (lb) | 1.50 |
Product Series Description | Pull Action Latch Clamp |
Product Function | Clamping |
Product Family | Manual Clamping |
Product Group | Pull-action Latch Clamps |
