Brand: DESTACO

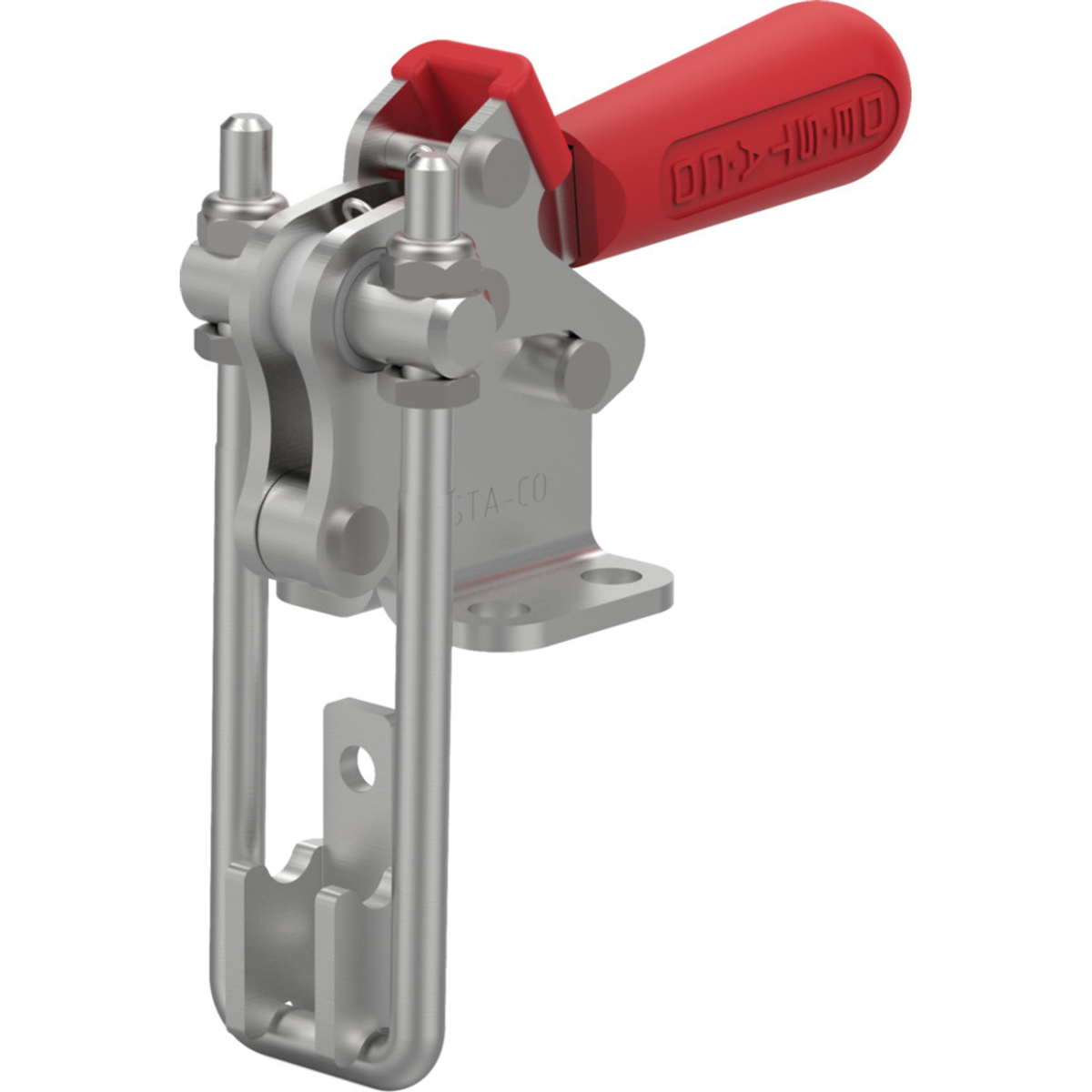

DESTACO 334-R-M-100 Vertical Pull-Action Latch Clamp, a 334-R With 100mm Longer Hook
SKU: DE-STA-CO-334-R-M-100
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order.**
The DESTACO 334-R-M-100 is a vertical pull-action latch clamp with steel construction. Maximum holding capacity is 1000 lbf. The configuration includes flange base mounting. Listed applications include clamping. A spindle is not included.
Product Specifications
| Manufacturer | DESTACO |
|---|---|
| Part Number | 334-R-M-100 |
| Height (in) | 2.55 |
| Length (in) | 8.06 |
| Weight (lb) | 0.7 |
| Width (in) | 1.56 |
| Product Application | CLAMPING |
| Drawing Movement without Thumb Control (in) | 2.04 |
| Max Hook Adjustment (in) | 0.86 |
| Maximum Holding Capacity (lbf) | 1000 |
| Spindle Included? | No |
| Base Mounting Style | Flange |
| Handle Color | Red |
| Hook Type | U-Hook (Vertical) |
| Latch Plate | 334101 |
| Latch Plate Supplied? | Yes |
| Product Type | Vertical Pull-Action Latch Clamp |
| Standard Material | Steel |
| Toggle Lock Plus | Yes |
