Brand: DESTACO

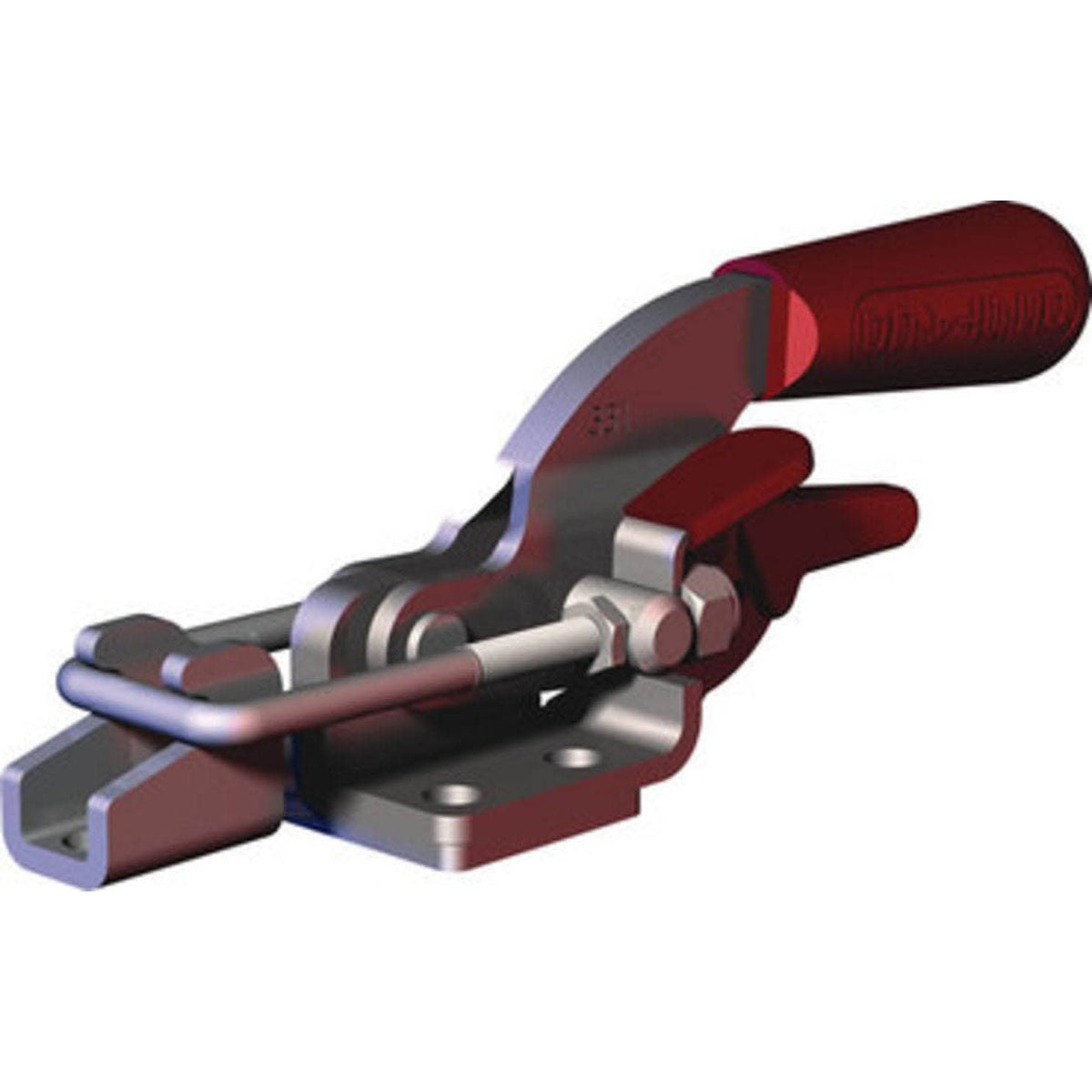

DESTACO 331-RSS WITH RELEASE LEVER
SKU: DE-STA-CO-331-RSS
MPN:
In-Stock: 28
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO 331-RSS WITH RELEASE LEVER
The DESTACO 331-RSS WITH RELEASE LEVER is part of the Toggle Lock Plus family, including models 323, 331, and 341, that is perfect for latching applications on molds, doors, lids, and access covers. The Stainless Steel construction and patented Thumb Control Lever make it easy to operate with one hand, while the supplied threaded U-hooks allow for simple adjustments.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 331-RSS WITH RELEASE LEVER
DESTACO® Toggle Lock Plus versions of the models 323, 331, and 341. Ideal for latching applications on molds, doors, lids, access covers
- Stainless Steel
- Patented Thumb Control Lever provides one-handed operation
- Supplied with threaded U-hooks for easy adjustment
- Latch plate included
- With Toggle Lock Plus
| Maximum Holding Capacity (lbsf) | 700 |
| Drawing Movement (in) | 1.780 |
| Max Hook Adjustment (in) | 0.590 |
| Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 32:1 |
| Available | Yes |
| Standard Material | Stainless Steel |
| Toggle Lock Plus | Yes |
| Base Mounting Style | Flange |
| Hook Type | U-Hook (Horizontal) |
| Latch Plate | 331905 |
| Latch Plate Supplied? | Yes |
| Replacement Hook Assembly | 331915 |
| Product Type | Standard |
| Weight (lb) | 0.55 |
| Product Series Description | Pull Action Latch Clamp |
| Product Function | Clamping |
| Product Family | Manual Clamping |
| Product Group | Pull-action Latch Clamps |
