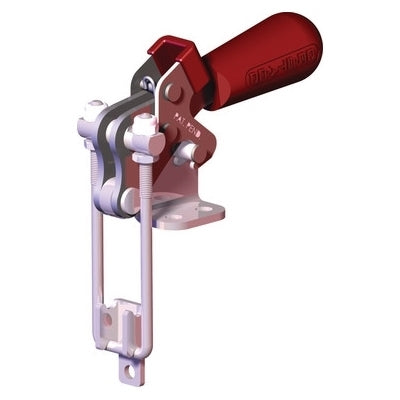

DESTACO 324-RSS ONE HANDED PULL ACTION LATCH CLAMP

Brand: DESTACO

DESTACO 324-RSS ONE HANDED PULL ACTION LATCH CLAMP

SKU: DE-STA-CO-324-RSS
MPN: 324-RSS

  • $60.66
    Unit price per
  • Save $4.68
Shipping calculated at checkout.

In-Stock: 21

Only 21 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO 324-RSS ONE-HANDED PULL ACTION LATCH TOGGLE CLAMP is perfect for securely fastening molds, doors, lids, access covers, drums, containers, and vessels. Its unique Toggle Lock Plus Patented Thumb Control Lever allows for easy one-handed operation, while the included latch plate and threaded U-hooks make for simple adjustment. With a maximum holding capacity of 500 lbsf and a drawing movement of 1.530 inches, this stainless steel toggle clamp boasts an impressive 31:1 exerting force to applied force ratio. Optional hook lengths are also available for added convenience.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 324-RSS ONE-HANDED PULL ACTION LATCH CLAMP

The clamp is mounted perpendicular to the latch surface. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels

  • Supplied with threaded U-hooks for easy adjustment
  • Latch plate included
  • With Toggle Lock Plus
  • Patented Thumb Control Lever provides one-handed operation
  • Optional hook lengths available
Maximum Holding Capacity (lbsf) 500
Drawing Movement (in) 1.530
Max Hook Adjustment (in) 0.440
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 31:1
Standard Material Stainless Steel
Toggle Lock Plus Yes
Base Mounting Style Flange
Hook Type U-Hook (Vertical)
Latch Plate 324101
Latch Plate Supplied? Yes
Replacement Hook Assembly 324915
Product Type Standard
Weight (lb) 0.24
Product Series Description Pull Action Latch Clamp
Product Function Clamping
Product Family Manual Clamping
Product Group Pull-action Latch Clamps
