Brand: DESTACO

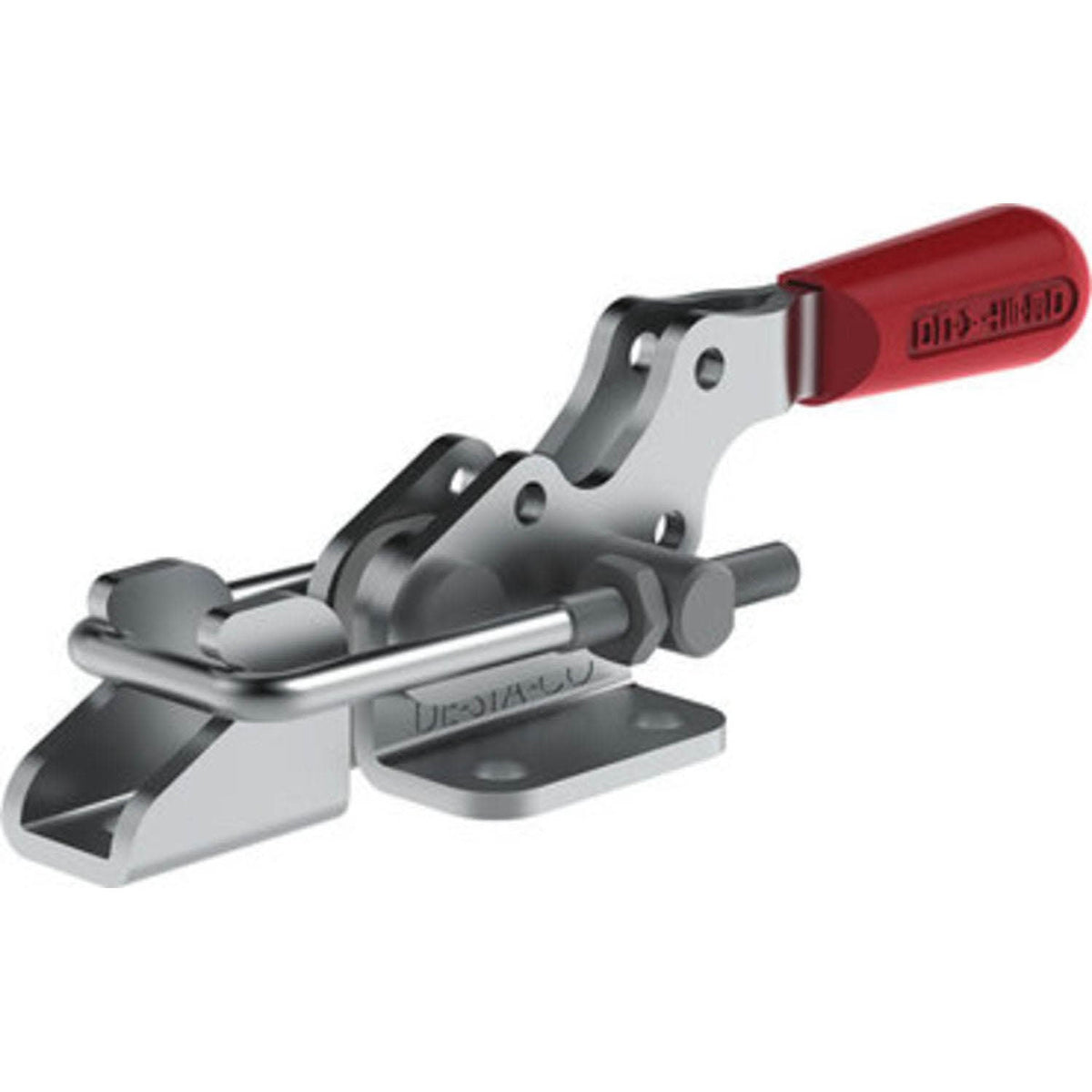

DESTACO 323-SS CLAMP PULL ACTION
SKU: DE-STA-CO-323-SS
MPN:
In-Stock: 6
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO 323-SS CLAMP PULL ACTION
The DESTACO 323-SS CLAMP PULL ACTION Threaded U-Bolt is perfect for adjusting and securing various items such as molds, doors, lids, access covers, drums, containers, and vessels. With a capacity of up to 2000 lbs, this versatile clamp features a patented Thumb Control Lever for easy one-handed operation and optional hook lengths for greater customization.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 323-SS CLAMP PULL ACTION
Threaded U-Bolt permits easy adjustment. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels
- Up to 2000 lb. Capacity
- Patented Thumb Control Lever provides one-handed operation
- Optional hook lengths available
Maximum Holding Capacity (lb) | 360 |
Drawing Movement (in) | 1.18 |
Hook Adjustable Range (in) | 0.42 |
Weight (lb) | 0.15 |
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 27:1 |
Available | Yes |
Toggle Lock Plus | No |
Hook Type | U-Hook (Horizontal) |
Latch Plate | 323104-MSS |
Latch Plate Supplied? | Yes |
Replacement Hook Assembly | 323915 |
Mounting Base | Flange |
Material | Stainless Steel |
Hook Type | U |
Product Type | Other Latch Clamps |
