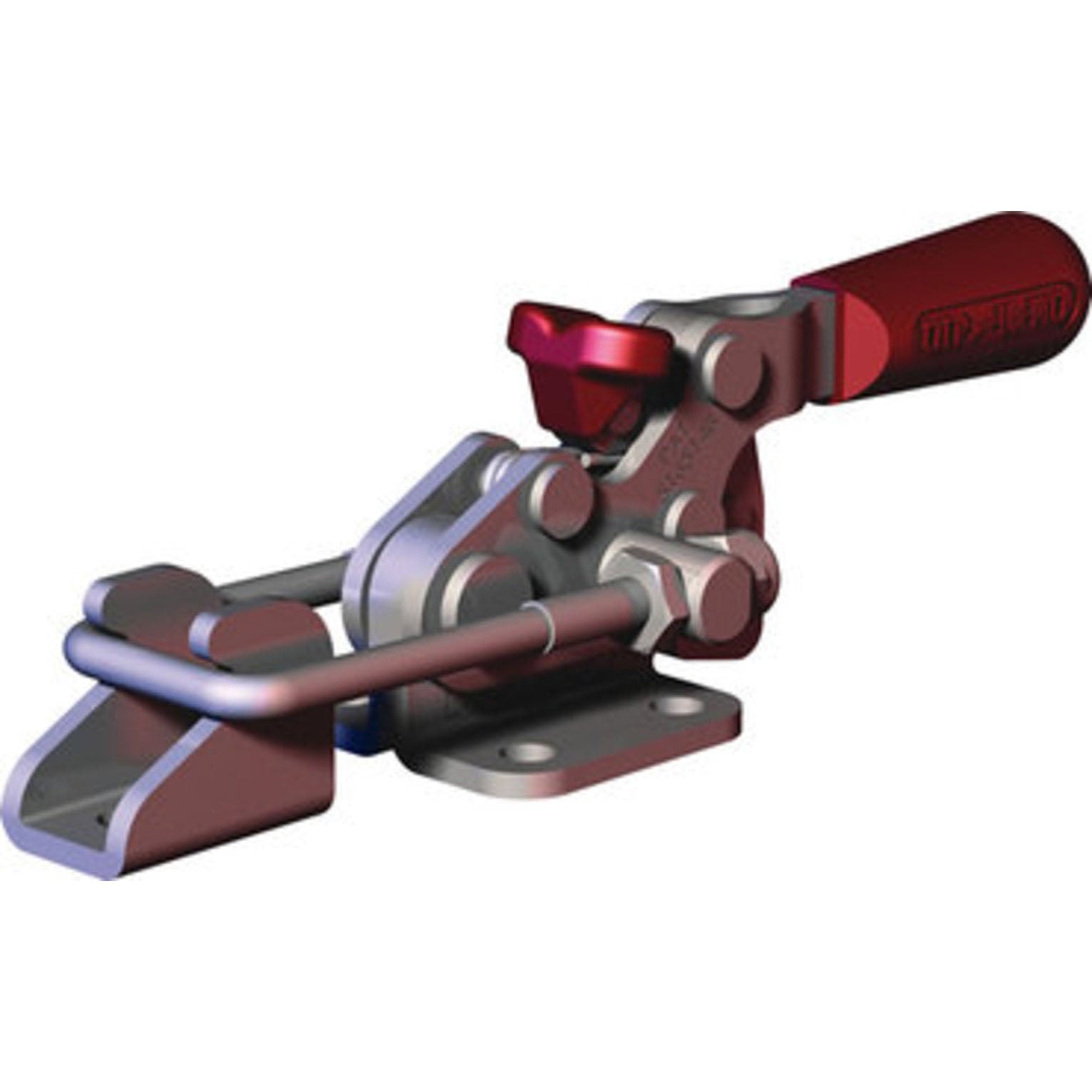

DESTACO 323-RSS - 323-SS WITH TOGGLE LOCK PLUS

Brand: DESTACO

DESTACO 323-RSS - 323-SS WITH TOGGLE LOCK PLUS

SKU: DE-STA-CO-323-RSS
MPN: 323-RSS

  • $52.50
    Unit price per
  • Save $6.59
Shipping calculated at checkout.

In-Stock: 23

Only 23 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

The DESTACO 323-RSS TOGGLE CLAMP is a Destaco 323-SS WITH TOGGLE LOCK PLUS. It is perfect for securely latching molds, doors, lids, and access covers. Made of stainless steel, this product comes with threaded U-hooks for easy adjustment and a latch plate. It boasts a maximum holding capacity of 360 lbsf, a drawing movement of 1.170 inches, and a maximum hook adjustment of 0.490 inches. With a force ratio of 27:1, this toggle clamp offers exceptional quality and durability for all your latching needs.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 323-RSS - 323-SS WITH TOGGLE LOCK PLUS

DESTACO 323-RSS - 323-SS WITH TOGGLE LOCK PLUS

DESTACO® Toggle Lock Plus versions of the models 323, 331, and 341. Ideal for latching applications on molds, doors, lids, access covers

  • Stainless Steel
  • Supplied with threaded U-hooks for easy adjustment
  • Latch plate included
  • With Toggle Lock Plus
Maximum Holding Capacity (lbsf) 360
Drawing Movement (in) 1.170
Max Hook Adjustment (in) 0.490
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 27:1
Standard Material Stainless Steel
Toggle Lock Plus Yes
Base Mounting Style Flange
Hook Type U-Hook (Horizontal)
Latch Plate 323104-MSS
Latch Plate Supplied? Yes
Replacement Hook Assembly 323915
Product Type Standard
Weight (lb) 0.15
Product Series Description Pull Action Latch Clamp
Product Function Clamping
Product Family Manual Clamping
Product Group Pull-action Latch Clamps
