Brand: DESTACO

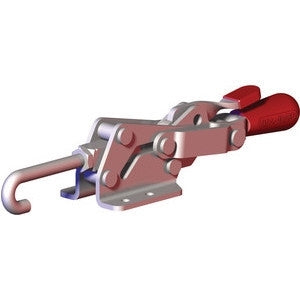

DESTACO 3051-RSS PULL ACTION LATCH CLAMPS FOR MOLDING
SKU: DE-STA-CO-3051-RSS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Enhance safety and convenience with the DESTACO 3051-RSS Pull Action Latch Toggle Clamps for Molding. This state-of-the-art toggle clamp allows for quick one-handed operation and maintains its over-center condition even when the latch point is elevated. With a maximum holding capacity of 1,500 lbsf and a drawing movement of 0.750 inches, this clamp has a 12:1 exerting force to applied force ratio. Plus, its stainless steel construction ensures durability. Upgrade your molding process today with a Destaco 3051-RSS toggle clamp!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 3051-RSS PULL ACTION LATCH CLAMPS FOR MOLDING
This new clamp offers a level safety and utility not found in any other toggle clamp. The innovative controlled hook motion allows quick, safe, one-handed operation. The clamp's over-center condition is not affected by the elevation of the latch point,
- Fast, safe, one-handed operation
- With Toggle Lock Plus
- Integrated lock-out hole for pin or lock
| Maximum Holding Capacity (lbsf) | 1,500 |
| Drawing Movement (in) | 0.750 |
| Hook Adjustment (in) | 0.550 |
| Max Hook Adjustment (in) | 0.550 |
| Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 12:1 |
| Standard Material | Stainless Steel |
| Toggle Lock Plus | Yes |
| Base Mounting Style | Flange |
| Hook Type | J-Hook |
| Replacement Hook Assembly | 3051808 |
| Product Type | Controlled |
| Weight (lb) | 1.10 |
| Product Series Description | Pull Action Latch Clamp |
| Product Function | Clamping |
| Product Family | Manual Clamping |
| Product Group | Pull-action Latch Clamps |
