Brand: DESTACO

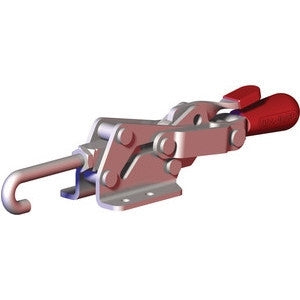

DESTACO 3031-RSS Pull Action Latch Clamps STAINLESS STEEL
SKU: DE-STA-CO-3031-RSS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 3031-RSS Pull Action Latch Toggle Clamps STAINLESS STEEL is a game-changing new clamp that provides unmatched safety and functionality. Its revolutionary hook motion allows for effortless and secure operation with just one hand. The over-center condition remains constant, regardless of the latch point's position, ensuring fast and reliable locking. With an integrated lock-out hole, this clamp can be easily secured with a pin or lock. Achieve maximum holding capacity of 200 lbsf, drawing movement of 0.500in, and hook adjustment of 0.390in with ease. Made from high-quality stainless steel, this toggle clamp is built to withstand any exerted force, with a 12:1 ratio of exerted force to applied force. Upgrade your clamping game with the DESTACO 3031-RSS.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 3031-RSS Pull Action Latch Clamps STAINLESS STEEL
This new clamp offers a level safety and utility not found in any other toggle clamp. The innovative controlled hook motion allows quick, safe, one-handed operation. The clamp's over-center condition is not affected by the elevation of the latch point,
- Fast, safe, one-handed operation
- With Toggle Lock Plus
- Integrated lock-out hole for pin or lock
Maximum Holding Capacity (lbsf) | 200 |
Drawing Movement (in) | 0.500 |
Hook Adjustment (in) | 0.390 |
Max Hook Adjustment (in) | 0.390 |
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) | 12:1 |
Standard Material | Stainless Steel |
Toggle Lock Plus | Yes |
Base Mounting Style | Flange |
Hook Type | J-Hook |
Replacement Hook Assembly | 3031808 |
Product Type | Controlled |
Weight (lb) | 0.65 |
Product Series Description | Pull Action Latch Clamp |
Product Function | Clamping |
Product Family | Manual Clamping |
Product Group | Pull-action Latch Clamps |
