Brand: DESTACO

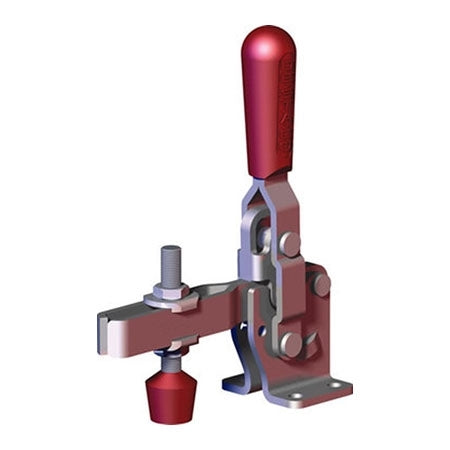

DESTACO 247-U CLAMP HOLD-DOWN ACTION
SKU: DE-STA-CO-247-U
MPN:
In-Stock: 14
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The action-packed DESTACO 247-U TOGGLE CLAMP offers superior strength and a unique bar guide feature for enhanced lateral stability. Its sturdy construction includes hardened steel bushings and larger bar guides for maximum support. The clamp also comes with a comfortable ergonomic handle grip and a neoprene spindle. With a capacity of 1000 lbs, this heavy-duty hold down clamp is perfect for any job. The clamp arm length is 4.87 inches and the height under the clamp arm is 2 inches, while the clamp bar and handle openings are at 120 and 67 degrees, respectively. With a weight of only 2.36 lbs, this steel toggle clamp is a powerful and versatile tool to have in your arsenal.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 247-U CLAMP HOLD-DOWN ACTION
Heavy-duty vertical hold down clamp offers bar guide feature for lateral stability
- Hardened steel bushings
- Larger bar guides for greater lateral stability
- Supplied with neoprene spindle.
- Ergonomic handle grip included
- 1000 lb. Capacity
- U-Bar models supplied with neoprene spindle
- Straight base and solid bar models available
| Maximum Holding Capacity (lb) | 1000 |
| Clamp Arm Length (in) | 4.87 |
| Height Under Clamp Arm (in) | 2.00 |
| Clamp Bar Opening (+10°) (degrees) | 120 |
| Handle Opening (+10°) | 67 |
| Weight (lb) | 2.36 |
| Standard Material | Steel |
| Toggle Lock Plus | No |
| Accommodates Workpiece Variation | No |
| Base Mounting Style | flanged |
| Clamp Arm Style | u-bar |
| Handle | Vertical |
| Service Environment | Normal |
| Application - Welding | Fair/Medium |
| Application - Assembly | Excellent/High |
| Application - Checking Fixtures | Excellent/High |
| Application - Machining | Poor/Low |
| Application - Wood-Working | Fair/Medium |
| Application - Closures | Poor/Low |
| Application - Food Processing | Not Recommended |
| Duty Cycle | 2 |
| Product Type | Standard |
