Brand: DESTACO

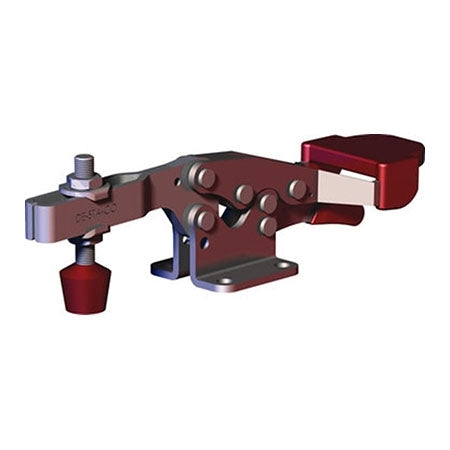

DESTACO 235-UR WITH RELEASE LEVER
SKU: DE-STA-CO-235-UR
MPN:
In-Stock: 25
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO 235-UR WITH RELEASE LEVER
The DESTACO 235-UR WITH RELEASE LEVER is the ultimate solution for your clamping needs. With its low profile design and Toggle Lock Plus feature, this clamp provides maximum holding capacity of 750 lbsf. The 4.160-inch clamp arm length and 1.700-inch height under clamp arm ensure precise and secure clamping. With a 92-degree clamp bar opening and 70-degree handle opening, this clamp can accommodate various workpiece variations.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 235-UR WITH RELEASE LEVER
Minimum overhead clearance is required for this low profile clamp
- Clamp supplied with neoprene spindle
- With Toggle Lock Plus
- Low profile
| Maximum Holding Capacity (lbsf) | 750 |
| Clamp Arm Length (in) | 4.160 |
| Height Under Clamp Arm (in) | 1.700 |
| Clamp Bar Opening (+10°) (degrees) | 92 |
| Handle Opening (+10°) | 70 |
| Available | Yes |
| Standard Material | Steel |
| Toggle Lock Plus | Yes |
| Accomodates Workpiece Variation | No |
| Base Mounting Style | Flange |
| Clamp Arm Style | U-Bar |
| Handle | Horizonal |
| Service Environment | Normal |
| Application - Welding | Fair/Medium |
| Application - Assembly | Excellent/High |
| Application - Checking Fixtures | Excellent/High |
| Application - Machining | Poor/Low |
| Application - Wood-Working | Excellent/High |
| Application - Closures | Excellent/High |
| Application - Food Processing | Fair/Medium |
| Duty Cycle | 2 |
| Product Type | Standard |
| Weight (lb) | 1.63 |
| Product Series Description | Horizontal Clamp |
| Product Function | Clamping |
| Product Family | Manual Clamping |
| Product Group | Hold Down Clamps |
