Brand: DESTACO

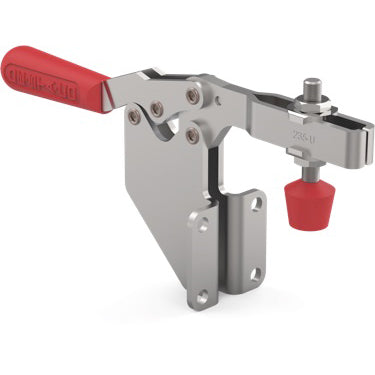

DESTACO 235-UF CLAMP HOLD-DOWN ACTION MODEL 235-U W/FRONT MOUNTING BASE
SKU: DE-STA-CO-235-UF
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO 235-UF CLAMP HOLD-DOWN ACTION MODEL 235-U W/FRONT MOUNTING BASE
The DESTACO 235-UF CLAMP HOLD-DOWN ACTION MODEL 235-U W/FRONT MOUNTING BASE offers a low profile design with a front mount base, allowing for minimum overhead clearance. Its neoprene spindle and low profile weight of 2.03 lbs make it a versatile and practical choice. With a maximum holding capacity of 750 lbf and a clamp arm length of 4.17 inches, this clamp is suitable for a variety of applications, including welding, assembly, machining, food processing, and woodworking.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 235-UF CLAMP HOLD-DOWN ACTION MODEL 235-U W/FRONT MOUNTING BASE
Minimum overhead clearance is required for this low profile clamp with front mount base.
- Front Mount Base
- Clamp supplied with neoprene spindle
- Low profile
Weight (lb) | 2.03 |
Maximum Holding Capacity (lbf) | 750 |
Height Under Clamp Arm (in) | 1.69 |
Clamp Arm Length (in) | 4.17 |
Application - Welding | Fair/Medium |
Handle Opening (+10°) | 70 |
Service Environment | Normal |
Application - Assembly | Excellent/High |
Base Mounting Style | Front Mount Base |
Application - Machining | Poor/Low |
Application - Food Processing | Fair/Medium |
Handle | Horizonal |
Application - Checking Fixtures | Excellent/High |
Product Series | 235 |
Clamp Arm Style | U-Bar |
Product Function | Clamping |
Standard Material | Steel |
Clamp Bar Opening (+10°) (degrees) | 92 |
Spindle Assembly | 2007208-M |
Application - Wood-Working | Excellent/High |
Toggle Lock Plus | No |
Flanged Washers | 507107 |
Duty Cycle | 2 |
Accommodates Workpiece Variation | No |
Product Type | Standard |
Application - Closures | Excellent/High |
