Brand: DESTACO

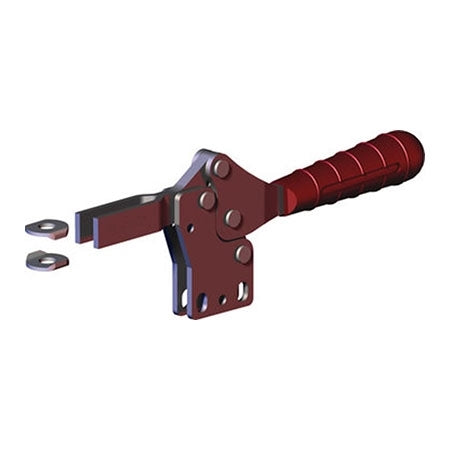

DESTACO 227-UB-L WITH OPEN U-BAR
SKU: DE-STA-CO-227-UB-L
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO 227-UB WITH OPEN U-BAR
The DESTACO227-UB-L is designed with an open u-bar for easy handling and a low profile for maximum holding capacity. Made of durable steel, this clamp also features a neoprene spindle and an adjustable clamp bar and handle opening. With a large handle clearance, this versatile clamp is perfect for a wide range of applications, including welding, assembly, checking fixtures, machining, wood-working, closures, and food processing.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO227-UB-LWITH OPEN U-BAR
- Large handle clearance in the open position
- Clamp supplied with neoprene spindle
- Low profile
Maximum Holding Capacity (lb) | 499 |
Clamp Arm Length (in) | 2.39 |
Height Under Clamp Arm (in) | 1.45 |
Clamp Bar Opening (+10°) (degrees) | 91 |
Handle Opening (+10°) | 56 |
Weight (lb) | 0.68 |
Available | Upon Request |
Standard Material | Steel |
Toggle Lock Plus | No |
Accommodates Workpiece Variation | No |
Base Mounting Style | straight |
Clamp Arm Style | open u-bar |
Handle | Horizontal |
Service Environment | Normal |
Application - Welding | Fair/Medium |
Application - Assembly | Excellent/High |
Application - Checking Fixtures | Excellent/High |
Application - Machining | Poor/Low |
Application - Wood-Working | Excellent/High |
Application - Closures | Excellent/High |
Application - Food Processing | Fair/Medium |
Duty Cycle | 2 |
Product Type | Standard |
