Brand: DESTACO

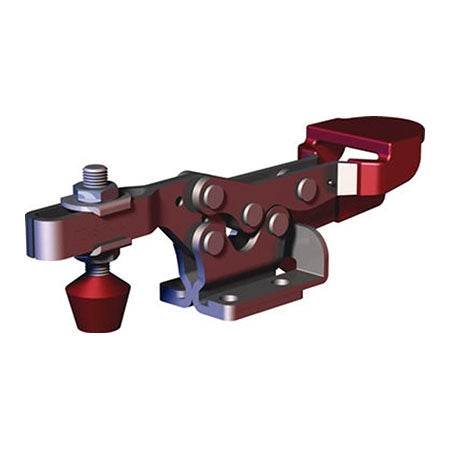

DESTACO 225-UR WITH RELEASE LEVER
SKU: DE-STA-CO-225-UR
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 225-UR TOGGLE CLAMP COMES WITH A RELEASE LEVER and offers a sleek, low profile design that requires minimal overhead clearance. With a maximum holding capacity of 500 pounds and a sturdy steel construction, this clamp is perfect for any job. The neoprene spindle and Toggle Lock Plus make for easy and secure use, while the 2.69 inch clamp arm length and 1.29 inch height under the clamp arm ensure a perfect fit. The handle opening of 70 degrees and clamp bar opening of 92 degrees (+10°) add versatility to this powerhouse tool. Weighing in at only 0.68 pounds, this toggle clamp is lightweight yet strong, making it an essential addition to any workspace.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 225-UR WITH RELEASE LEVER
Minimum overhead clearance is required for this low profile clamp
- Clamp supplied with neoprene spindle
- With Toggle Lock Plus
- Low profile
Maximum Holding Capacity (lb) | 500 |
Clamp Arm Length (in) | 2.69 |
Height Under Clamp Arm (in) | 1.29 |
Clamp Bar Opening (+10°) (degrees) | 92 |
Handle Opening (+10°) | 70 |
Weight (lb) | 0.68 |
Standard Material | Steel |
Toggle Lock Plus | Yes |
Accommodates Workpiece Variation | No |
Base Mounting Style | flanged |
Clamp Arm Style | u-bar |
Handle | Horizontal |
Service Environment | Normal |
Application - Welding | Fair/Medium |
Application - Assembly | Excellent/High |
Application - Checking Fixtures | Excellent/High |
Application - Machining | Poor/Low |
Application - Wood-Working | Excellent/High |
Application - Closures | Excellent/High |
Application - Food Processing | Fair/Medium |
Duty Cycle | 2 |
Product Type | Standard |
