Brand: DESTACO

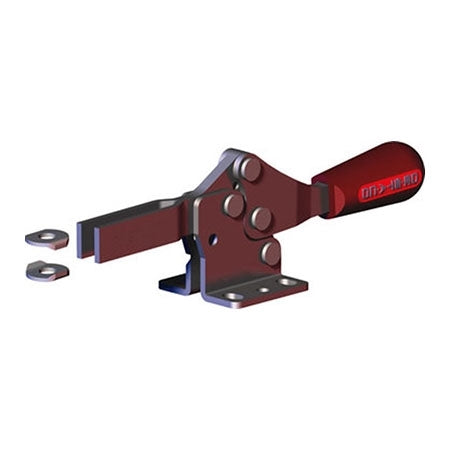

DESTACO 217-U-L WITH OPEN U-BAR
SKU: DE-STA-CO-217-U-L
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO 217-U-L WITH OPEN U-BAR
The DESTACO 217-U-L WITH OPEN U-BAR boasts a unique design that provides plenty of hand clearance for comfortable use. Models ending in "-L" feature an open U-bar that allows for attachments of arm extensions. The clamp is equipped with a neoprene spindle and has a low profile, making it capable of holding up to 200 pounds.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 217-U-L WITH OPEN U-BAR
The unique design gives greater hand clearance between the bar and handle. Models ending in "-L" feature an open U-bar for attachments of arm extensions."
- Clamp supplied with neoprene spindle
- Low profile
Maximum Holding Capacity (lbsf) | 200 |
Clamp Arm Length (in) | 1.490 |
Height Under Clamp Arm (in) | 0.920 |
Clamp Bar Opening (+10°) (degrees) | 91 |
Handle Opening (+10°) | 61 |
Available | Upon Request |
Standard Material | Steel |
Toggle Lock Plus | No |
Accommodates Workpiece Variation | No |
Base Mounting Style | Flange |
Clamp Arm Style | Open U-Bar |
Handle | Horizontal |
Service Environment | Normal |
Application - Welding | Fair/Medium |
Application - Assembly | Excellent/High |
Application - Checking Fixtures | Excellent/High |
Application - Machining | Poor/Low |
Application - Wood-Working | Excellent/High |
Application - Closures | Excellent/High |
Application - Food Processing | Fair/Medium |
Duty Cycle | 2 |
Product Type | Standard |
Weight (lb) | 0.40 |
Product Series Description | Horizontal Clamp |
Product Function | Clamping |
Product Family | Manual Clamping |
Product Group | Hold Down Clamps |
