Brand: DESTACO

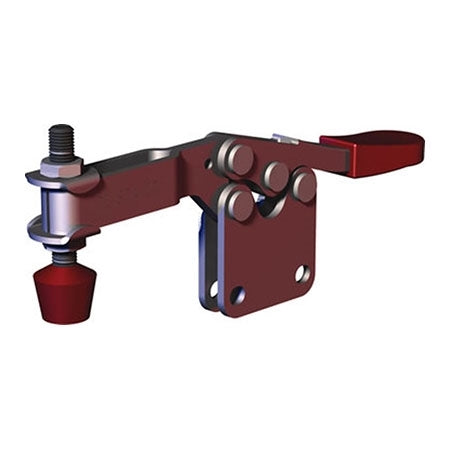

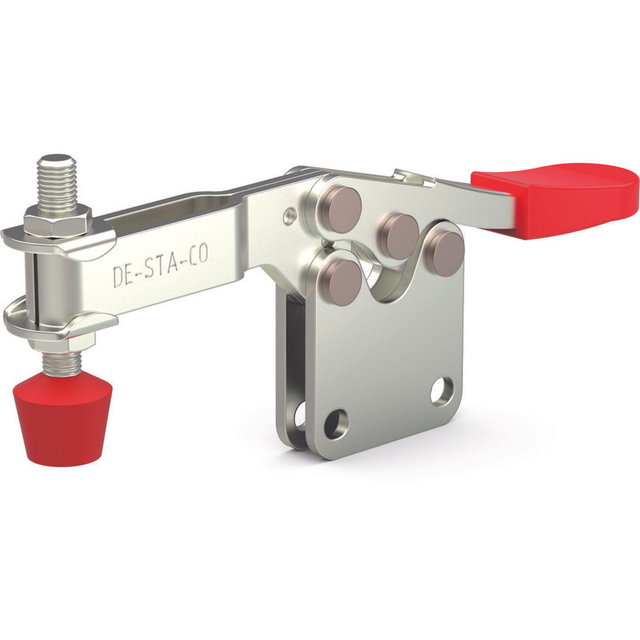

DESTACO 215-UB CLAMP HOLD-DOWN ACTION
SKU: DE-STA-CO-215-UB
MPN:
In-Stock: 2
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Increase efficiency with the DESTACO 215-UB HOLD-DOWN ACTION TOGGLE CLAMP! Ensure a low profile clamp with minimum overhead clearance and a neoprene spindle. With a maximum holding capacity of 200lbs and an adjustable clamp arm length of 2.25 inches, this clamp provides the utmost versatility. The low height of 1.15 inches under the clamp arm and an opening of 87 degrees (+10°) on the clamp bar and 78 degrees (+10°) on the handle make this a must-have tool. Made of high-quality steel, this toggle clamp weighs only 0.33lbs for easy handling. Upgrade your workspace with the DESTACO 215-UB HOLD-DOWN ACTION TOGGLE CLAMP!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 215-UB CLAMP HOLD-DOWN ACTION
Minimum overhead clearance is required for this low profile clamp
- Clamp supplied with neoprene spindle
- Low profile
Maximum Holding Capacity (lb) | 200 |
Clamp Arm Length (in) | 2.25 |
Height Under Clamp Arm (in) | 1.15 |
Clamp Bar Opening (+10°) (degrees) | 87 |
Handle Opening (+10°) | 78 |
Weight (lb) | 0.33 |
Standard Material | Steel |
Toggle Lock Plus | No |
Accommodates Workpiece Variation | No |
Base Mounting Style | straight |
Clamp Arm Style | u-bar |
Handle | Horizontal |
Service Environment | Normal |
Application - Welding | Fair/Medium |
Application - Assembly | Excellent/High |
Application - Checking Fixtures | Excellent/High |
Application - Machining | Poor/Low |
Application - Wood-Working | Excellent/High |
Application - Closures | Excellent/High |
Application - Food Processing | Fair/Medium |
Duty Cycle | 2 |
Product Type | Standard |
