Brand: DESTACO

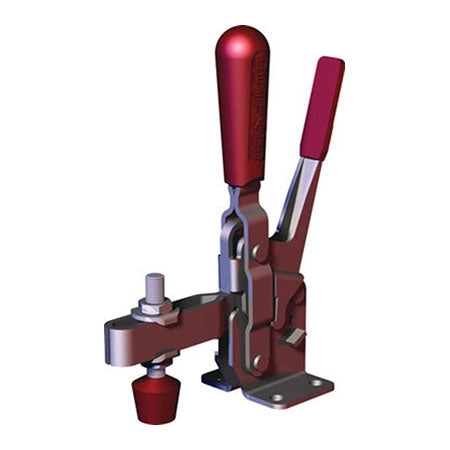

DESTACO 210-UR WITH POSITIVE LOCK LATCH
SKU: DE-STA-CO-210-UR
MPN:
In-Stock: 4
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 210-UR TOGGLE CLAMP WITH POSITIVE LOCK LATCH offers mid-range capacity, making it perfect for a wide range of applications. It comes with a neoprene spindle and Toggle Lock Plus for added convenience. This versatile latching system can hold up to 600 pounds and has a clamp arm length of 3.66 inches and a height under the clamp arm of 1.68 inches. Its clamp bar opening is at a +10° angle, while the handle opening is at 58°, and it weighs only 1.61 pounds. Made from durable steel, this toggle clamp is sure to meet all your needs.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 210-UR WITH POSITIVE LOCK LATCH
Mid-range capacity. Ideal for use in a wide variety of applications.
- Supplied with neoprene spindle
- With Toggle Lock Plus
- Ergonomic handle grip included
- All U-bars supplied with neoprene spindle.
- Ergonomic handle grip included, along with T-handle, base, and bar options
- Stainless steel and DESTACO® Toggle Lock Plus options.
| Maximum Holding Capacity (lb) | 600 |
| Clamp Arm Length (in) | 3.66 |
| Height Under Clamp Arm (in) | 1.68 |
| Clamp Bar Opening (+10°) (degrees) | 103 |
| Handle Opening (+10°) | 58 |
| Weight (lb) | 1.61 |
| Standard Material | Steel |
| Toggle Lock Plus | Yes |
| Accommodates Workpiece Variation | No |
| Base Mounting Style | flanged |
| Clamp Arm Style | u-bar |
| Handle | Vertical |
| Service Environment | Normal |
| Application - Welding | Fair/Medium |
| Application - Assembly | Excellent/High |
| Application - Checking Fixtures | Excellent/High |
| Application - Machining | Poor/Low |
| Application - Wood-Working | Excellent/High |
| Application - Closures | Fair/Medium |
| Application - Food Processing | Fair/Medium |
| Duty Cycle | 2 |
| Product Type | Standard |
