Brand: DESTACO

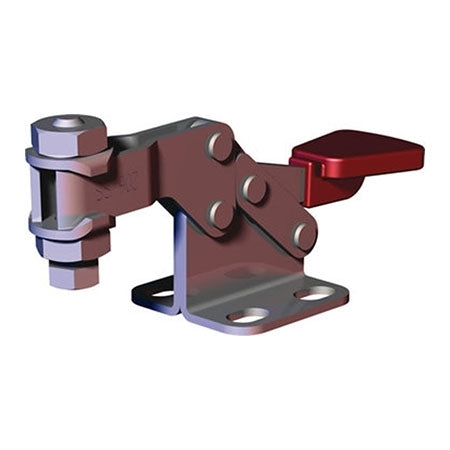

DESTACO 206-HSS HIGH-BAR FLANGED-BASE
SKU: DE-STA-CO-206-HSS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 206-HSS HIGH-BAR FLANGED-BASE TOGGLE CLAMP provides a compact, stainless steel solution with a low profile and high holding capacity. It features a High U-Bar clamping arm and a stainless steel hex head spindle, making it both strong and durable. With a maximum holding capacity of 100 lbs, a clamp arm length of 0.93 inches, and a height under clamp arm of 0.75 inches, this clamp offers excellent clearance and versatility. The handle and clamp bar can both open to 90 degrees, making it easy to work with a variety of materials. Weighing in at just 0.07 lbs, this toggle clamp is lightweight yet sturdy. Experience the power and efficiency of the Standard Material Stainless Steel design.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 206-HSS HIGH-BAR FLANGED-BASE
Low profile clamp offers good clearance under the bar in a small package.
- Stainless steel design
- High U-Bar clamping arm supplied with stainless steel hex head spindle
Maximum Holding Capacity (lb) | 100 |
Clamp Arm Length (in) | 0.93 |
Height Under Clamp Arm (in) | 0.75 |
Clamp Bar Opening (+10°) (degrees) | 90 |
Handle Opening (+10°) | 90 |
Weight (lb) | 0.07 |
Standard Material | Stainless Steel |
Toggle Lock Plus | No |
Accommodates Workpiece Variation | No |
Base Mounting Style | flanged |
Clamp Arm Style | high u-bar |
Handle | Horizontal |
Service Environment | Harsh/Dirty |
Application - Welding | Poor/Low |
Application - Assembly | Excellent/High |
Application - Checking Fixtures | Fair/Medium |
Application - Machining | Poor/Low |
Application - Wood-Working | Fair/Medium |
Application - Closures | Excellent/High |
Application - Food Processing | Fair/Medium |
Duty Cycle | 2 |
Product Type | Standard |
