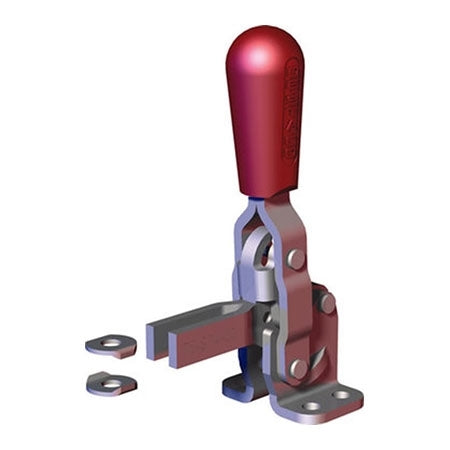

DESTACO 202-U-L - 202-U VERTICAL HOLD-DOWN CLAMP

Brand: DESTACO

DESTACO 202-U-L - 202-U VERTICAL HOLD-DOWN CLAMP

SKU: DE-STA-CO-202-U-L
MPN: 202-U-L

  • $18.53
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Short Description

Unleash the power of DESTACO 202-U-L, which is a 202-U with an open u-bar, VERTICAL HOLD-DOWN TOGGLE CLAMP, a highly sought-after series for vertical hold-down applications. Its versatile design makes it a perfect fit for checking fixtures. This has an open U-bar for attaching arm extensions, while being equipped with a neoprene spindle and an ergonomic handle grip for optimal functionality. With a maximum holding capacity of 200 lbsf and a clamp arm length of 1.500 inches, this steel toggle clamp is sure to meet your needs.

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Full Description

DESTACO 202-U-L - 202-U VERTICAL HOLD-DOWN CLAMP

DESTACO 202-U-L - 202-U VERTICAL HOLD-DOWN CLAMP

One of the most popular series in our line of vertical hold-down clamps. Ideal for use in checking fixtures. Models ending in "-L" feature an open U-bar for attachments of arm extensions."

  • Supplied with neoprene spindle.
  • Ergonomic handle grip included
Maximum Holding Capacity (lbsf) 200
Clamp Arm Length (in) 1.500
Height Under Clamp Arm (in) 0.920
Clamp Bar Opening (+10°) (degrees) 105
Handle Opening (+10°) 65
Standard Material Steel
Toggle Lock Plus No
Accommodates Workpiece Variation No
Base Mounting Style Flange
Clamp Arm Style Open U-Bar
Handle Vertical
Service Environment Normal
Application - Welding Poor/Low
Application - Assembly Excellent/High
Application - Checking Fixtures Excellent/High
Application - Machining Not Recommended
Application - Wood-Working Excellent/High
Application - Closures Excellent/High
Application - Food Processing Fair/Medium
Duty Cycle 1
Product Type Standard
Weight (lb) 0.35
Product Series Description Vertical Clamp
Product Function Clamping
Product Family Manual Clamping
Product Group Hold Down Clamps
