Brand: DESTACO

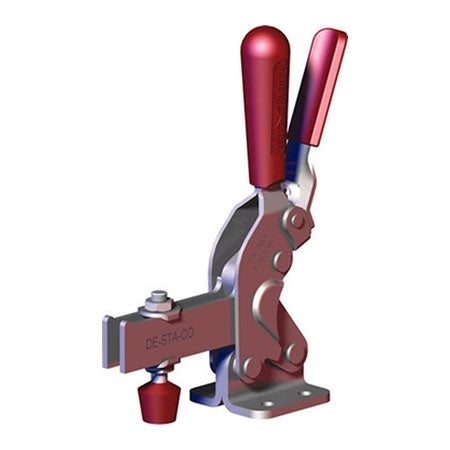

DESTACO 2010-UR VERTICAL CLAMP
SKU: DE-STA-CO-2010-UR
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO 2010-UR VERTICAL TOGGLE CLAMP - a revolutionary toggle clamp that boasts over twice the capacity of our previous models. With an extended handle, increased hand clearance, and Toggle Lock Plus feature, you can securely and effortlessly hold your workpiece in a vertical position. This clamp has a maximum holding capacity of 1,400 lbsf, a clamp arm length of 3.550 inches, a height under clamp arm of 1.700 inches, and a clamp bar opening of 78 degrees (+10°) and a handle opening of 66 degrees (+10°). Crafted from sturdy steel, this is a must-have tool for any workshop. Don't settle for less - choose the DESTACO 2010-UR TOGGLE CLAMP for superior clamping power.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 2010-UR VERTICAL CLAMP
New generation toggle clamp with over 2 times the capacity of our legacy models
- Longer handle with greater hand clearance
- With Toggle Lock Plus
- Longer clamp arm
- Spindle contacts workpiece vertically
Maximum Holding Capacity (lbsf) | 1,400 |
Clamp Arm Length (in) | 3.550 |
Height Under Clamp Arm (in) | 1.700 |
Clamp Bar Opening (+10°) (degrees) | 78 |
Handle Opening (+10°) | 66 |
Standard Material | Steel |
Toggle Lock Plus | Yes |
Accommodates Workpiece Variation | No |
Base Mounting Style | Flange |
Clamp Arm Style | U-Bar |
Handle | Vertical |
Service Environment | Normal |
Application - Welding | Fair/Medium |
Application - Assembly | Excellent/High |
Application - Checking Fixtures | Excellent/High |
Application - Machining | Poor/Low |
Application - Wood-Working | Excellent/High |
Application - Closures | Excellent/High |
Application - Food Processing | Not Recommended |
Duty Cycle | 2 |
Product Type | Standard |
Weight (lb) | 2.56 |
Product Series Description | Vertical Clamp |
Product Function | Clamping |
Product Family | Manual Clamping |
Product Group | Hold Down Clamps |
