Brand: DESTACO

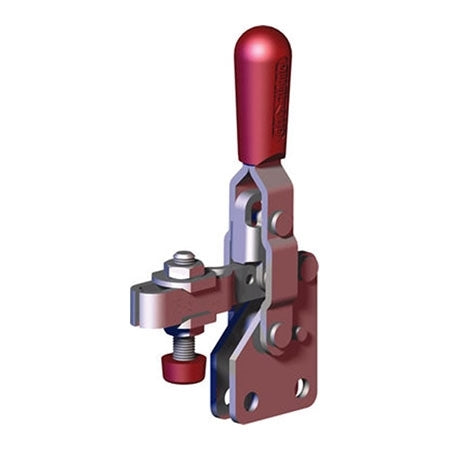

DESTACO 201-UB Vertical Handle Clamp
SKU: DE-STA-CO-201-UB
MPN:
In-Stock: 5
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO 201-UB Vertical Handle Toggle Clamp: the compact powerhouse of the handle hold-down range. This series comes equipped with a neoprene spindle and a low profile T-handle, delivering maximum holding capacity of 100 lbsf. The 1.010 inch clamp arm length and 0.630 inch height under the clamp arm provide the perfect fit for your needs. With a +10° clamp bar opening and 55° handle opening, this steel toggle clamp is a standard choice for any job.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 201-UB Vertical Handle Clamp
The smallest series in the vertical handle hold-down range.
- Smallest Vertical Handle Clamp series
- Supplied with neoprene spindle.
- Low profile T-handle
Maximum Holding Capacity (lbsf) | 100 |
Clamp Arm Length (in) | 1.010 |
Height Under Clamp Arm (in) | 0.630 |
Clamp Bar Opening (+10°) (degrees) | 100 |
Handle Opening (+10°) | 55 |
Standard Material | Steel |
Toggle Lock Plus | No |
Accommodates Workpiece Variation | No |
Base Mounting Style | Straight |
Clamp Arm Style | U-Bar |
Handle | T-Handle |
Service Environment | Normal |
Application - Welding | Poor/Low |
Application - Assembly | Excellent/High |
Application - Checking Fixtures | Excellent/High |
Application - Machining | Not Recommended |
Application - Wood-Working | Excellent/High |
Application - Closures | Excellent/High |
Application - Food Processing | Fair/Medium |
Duty Cycle | 1 |
Product Type | Standard |
Weight (lb) | 1.54 |
Product Series Description | Vertical Clamp |
Product Function | Clamping |
Product Family | Manual Clamping |
Product Group | Hold Down Clamps |
