Brand: DESTACO

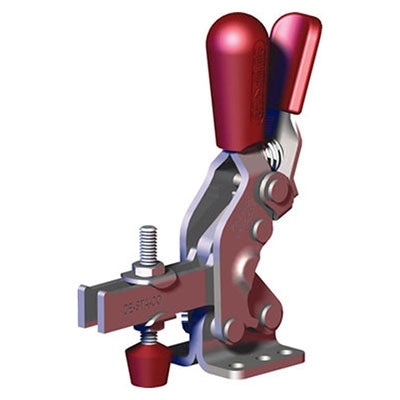

DESTACO 2002-UR207 2002-UR WITH 207 MOUNTING PATTERN
SKU: DE-STA-CO-2002-UR207
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
DESTACO 2002-UR207 2002-UR WITH 207 MOUNTING PATTERN.
Upgrade your clamping capabilities with the new generation DESTACO 2002-UR207! With three times the capacity of our legacy models, this toggle clamp is a game changer. Featuring a longer handle for increased hand clearance and a longer clamp arm, you can easily and securely hold down your workpiece. The vertical spindle contacts ensure maximum holding capacity of 600 lbsf. The U-Bar style clamp arm and toggle lock plus provide extra stability.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO2002-UR207 2002-UR WITH 207 MOUNTING PATTERN
New generation toggle clamp with 3 times the capacity of our legacy models
- Longer handle with greater hand clearance
- Longer clamp arm
- Spindle contacts workpiece vertically
Maximum Holding Capacity (lbsf) | 600 |
Clamp Arm Length (in) | 1.930 |
Height Under Clamp Arm (in) | 1.250 |
Clamp Bar Opening (+10°) (degrees) | 75 |
Handle Opening (+10°) | 57 |
Available | Yes |
Standard Material | Steel |
Toggle Lock Plus | Yes |
Accomodates Workpiece Variation | No |
Base Mounting Style | Flange |
Clamp Arm Style | U-Bar |
Handle | Vertical |
Service Environment | Normal |
Application - Welding | Fair/Medium |
Application - Assembly | Excellent/High |
Application - Checking Fixtures | Excellent/High |
Application - Machining | Poor/Low |
Application - Wood-Working | Excellent/High |
Application - Closures | Excellent/High |
Application - Food Processing | Not Recommended |
Duty Cycle | 2 |
Product Type | Standard |
Weight (lb) | 0.57 |
Product Series Description | Vertical Clamp |
Product Function | Clamping |
Product Family | Manual Clamping |
Product Group | Hold Down Clamps |
