Brand: DESTACO

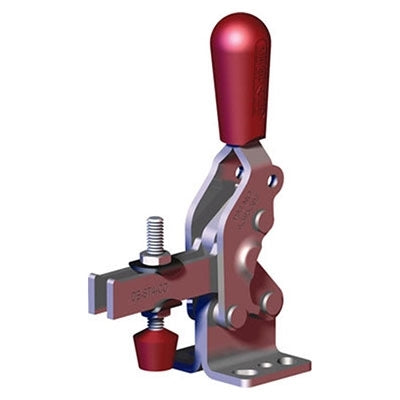

DESTACO 2002-U207 - 2002-U WITH 207 MOUNTING PATTERN
SKU: DE-STA-CO-2002-U207
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 2002-U207 - 2002-U WITH 207 MOUNTING PATTERN is a next-generation toggle clamp with three times the capacity of our traditional models. It features a longer handle with increased hand clearance, a longer clamp arm, and a spindle that contacts the workpiece vertically. With a maximum holding capacity of 600 lbsf, a clamp arm length of 1.930 inches, a height under the clamp arm of 1.250 inches, and a clamp bar opening of 90 degrees at +10°, this toggle clamp offers superior performance and reliability. Made with standard steel material, it is a must-have tool for any serious worker.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 2002-U207 - 2002-U WITH 207 MOUNTING PATTERN
New generation toggle clamp with 3 times the capacity of our legacy models
- Longer handle with greater hand clearance
- Longer clamp arm
- Spindle contacts workpiece vertically
Maximum Holding Capacity (lbsf) | 600 |
Clamp Arm Length (in) | 1.930 |
Height Under Clamp Arm (in) | 1.250 |
Clamp Bar Opening (+10°) (degrees) | 90 |
Handle Opening (+10°) | 72 |
Standard Material | Steel |
Toggle Lock Plus | No |
Accommodates Workpiece Variation | No |
Base Mounting Style | Flange |
Clamp Arm Style | U-Bar |
Handle | Vertical |
Service Environment | Normal |
Application - Welding | Fair/Medium |
Application - Assembly | Excellent/High |
Application - Checking Fixtures | Excellent/High |
Application - Machining | Poor/Low |
Application - Wood-Working | Excellent/High |
Application - Closures | Excellent/High |
Application - Food Processing | Not Recommended |
Duty Cycle | 2 |
Product Type | Standard |
Weight (lb) | 0.57 |
Product Series Description | Vertical Clamp |
Product Function | Clamping |
Product Family | Manual Clamping |
Product Group | Hold Down Clamps |
