Brand: DESTACO

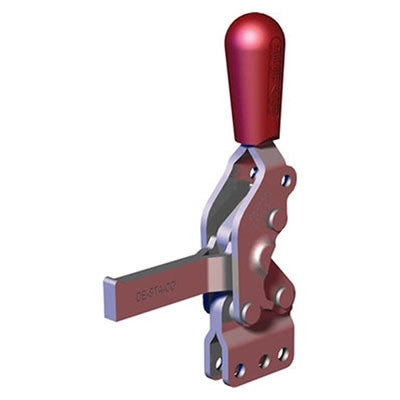

DESTACO 2002-SB VERTICAL CLAMP
SKU: DE-STA-CO-2002-SB
MPN:
In-Stock: 25
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
The DESTACO 2002-SB VERTICAL TOGGLE CLAMP is a next-generation toggle clamp that boasts 3 times the capacity of our previous models. With a longer handle that provides greater hand clearance and a longer clamp arm, this clamp is designed to contact the workpiece vertically for maximum holding capacity of 607 lbs. It features a clamp arm length of 1.91 inches and a height under the clamp arm of 1.28 inches. With a clamp bar opening of 75 degrees and a handle opening of 66 degrees, this toggle clamp is lightweight at 0.49 lbs and made of sturdy steel.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO 2002-SB VERTICAL CLAMP
New generation toggle clamp with 3 times the capacity of our legacy models
- Longer handle with greater hand clearance
- Longer clamp arm
- Spindle contacts workpiece vertically
Maximum Holding Capacity (lb) | 607 |
Clamp Arm Length (in) | 1.91 |
Height Under Clamp Arm (in) | 1.28 |
Clamp Bar Opening (+10°) (degrees) | 75 |
Handle Opening (+10°) | 66 |
Weight (lb) | 0.49 |
Standard Material | Steel |
Toggle Lock Plus | No |
Accommodates Workpiece Variation | No |
Base Mounting Style | straight |
Clamp Arm Style | solid bar |
Handle | Vertical |
Service Environment | Normal |
Application - Welding | Fair/Medium |
Application - Assembly | Excellent/High |
Application - Checking Fixtures | Excellent/High |
Application - Machining | Poor/Low |
Application - Wood-Working | Excellent/High |
Application - Closures | Excellent/High |
Application - Food Processing | Not Recommended |
Duty Cycle | 2 |
Product Type | Standard |
