Brand: DESTACO

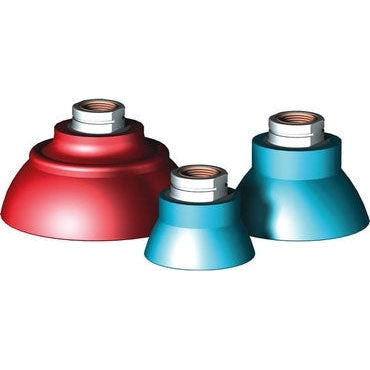

DESTACO CPI-40DD-B-45 DD/DM - ROUND DEEPDISH VACUUM CUP DD 4in. B-MT RED

SKU: DE-STA-CO-CPI-40DD-B-45
MPN: CPI-40DD-B-45

$31.14
Unit price per
Save $3.59

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

Experience the ultimate gripping power with the DESTACO CPI-40DD-B-45 DD/DM Round Deepdish Vacuum Cup! Our cups feature thin, flexible side walls that easily conform to highly-contoured parts. Perfect for both horizontal and vertical lifting, they can hold up to 11.3kg (25.0lbf) horizontally dry, 3.2kg (7.0lbf) horizontally wet, and 15.8kg (35lbf) vertically. With a weight of just 96.0g (3.4oz) and a diameter of 101.6mm (4.000in), these cups are lightweight and easy to handle. Made with durable nitrile material in a vibrant red, and equipped with a 3/8" NPT mount, these cups are a must-have for any industrial setting. Elevate your productivity and efficiency with the DESTACO CPI-40DD-B-45 Round Deepdish Vacuum Cup!

*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO CPI-40DD-B-45 DD/DM - ROUND DEEPDISH VACUUM CUP DD 4in. B-MT RED

Product Details

Deep Dish Cups have thin, deep side walls that are very flexible for highly contoured parts

Holding Capacity - Horizontal Dry (kg)	11.3
Holding Capacity - Horizontal Dry (lbf)	25.0
Holding Capacity - Horizontal Wet (kg)	3.2
Holding Capacity - Horizontal Wet (lbf)	7.0
Holding Capacity - Vertical Lift (kg)	15.8
Holding Capacity - Vertical Lift (lbf)	35
Weight (g)	96.0
Weight (oz)	3.4
Diameter (mm)	101.6
Diameter (in)	4.000
Material	Nitrile
Durometer	45 (Red)
Mount	3/8" NPT
Temperature Range	15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C)
Chemical Resistance	Oil, water, grease, hydraulic fluid, alcohol
Shape	Round
Product Type	Deepdish
Cup Size	4.00 in
Product Series Description	Nitrile Rubber
