Brand: DESTACO

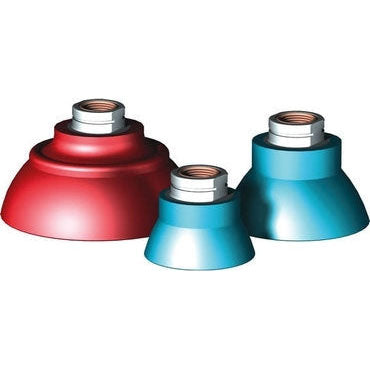

DESTACO CPI-40DD-B-30 CUP DD 4in. B-MT BLUE ROUND DEEPDISH VACUUM CUPS
SKU: DE-STA-CO-CPI-40DD-B-30
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Introducing the DESTACO CPI-40DD-B-30 CUP DD 4in. B-MT BLUE ROUND DEEPDISH VACUUM CUPS - the perfect solution for holding highly contoured parts with ease! With its thin and flexible deep side walls, these cups provide unbeatable holding capacity for both dry and wet horizontal applications, as well as vertical lift tasks. Made of high-quality Nitrile material with a Durometer rating of 30 (in the vibrant color blue), and featuring a 3/8" NPT mount, these cups are both durable and versatile. Don't miss out on this must-have product for your vacuum cup needs!
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-40DD-B-30 CUP DD 4in. B-MT BLUE ROUND DEEPDISH VACUUM CUPS
Product Details
Deep Dish Cups have thin, deep side walls that are very flexible for highly contoured parts
| Holding Capacity - Horizontal Dry (lbf) | 25.0 |
| Holding Capacity - Horizontal Wet (lbf) | 7.0 |
| Holding Capacity - Vertical Lift (kg) | 16 |
| Holding Capacity - Vertical Lift (lbf) | 35 |
| Weight (oz) | 3.4 |
| Diameter (in) | 4.000 |
| Material | Nitrile |
| Durometer | 30 (Blue) |
| Mount | 3/8" NPT |
| Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Deepdish |
| Cup Size | 4.00 in |
| Product Series Description | Nitrile Rubber |
| Product Function | Robotic Tooling |
| Product Family | End Effectors |
| Product Group | vacuum cups |
