Brand: DESTACO

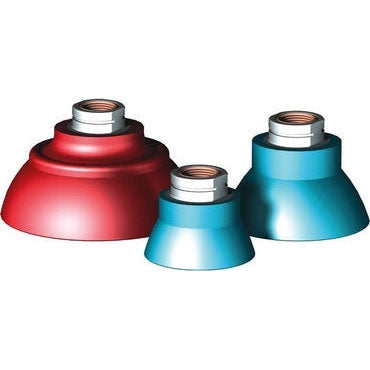

DESTACO CPI-30DD-C-45 DD/DM - ROUND DEEPDISH VACUUM CUP DD 3in. C-MT RED
SKU: DE-STA-CO-CPI-30DD-C-45
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
Experience the impressive holding capacity and flexibility of DESTACO's CPI-30DD-C-45 DD/DM - ROUND DEEPDISH VACUUM CUP DD 3in. C-MT RED. With thin and deep side walls, these cups are perfect for even the most contoured parts. The horizontal dry holding capacity is an impressive 14.0 lbf (6.4 kg), while the vertical lift can reach up to 20 lbf (9.1 kg). Made with high-quality Nitrile material and a durometer of 45 (Red), these cups are both durable and reliable. Plus, with a weight of only 57.0 g (2.0 oz) and a diameter of 76.2 mm (3.000 in), they are lightweight and versatile. Upgrade your vacuum system with DESTACO.
*In-stock Destaco products will be shipped within 3 business days. If product doesn't show an in-stock quantity, then average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
DESTACO CPI-30DD-C-45 DD/DM - ROUND DEEPDISH VACUUM CUP DD 3in. C-MT RED
Product Details
Deep Dish Cups have thin, deep side walls that are very flexible for highly contoured parts
| Holding Capacity - Horizontal Dry (kg) | 6.4 |
| Holding Capacity - Horizontal Dry (lbf) | 14.0 |
| Holding Capacity - Horizontal Wet (kg) | 2.7 |
| Holding Capacity - Horizontal Wet (lbf) | 6.0 |
| Holding Capacity - Vertical Lift (kg) | 9.1 |
| Holding Capacity - Vertical Lift (lbf) | 20 |
| Weight (g) | 57.0 |
| Weight (oz) | 2.0 |
| Diameter (mm) | 76.2 |
| Diameter (in) | 3.000 |
| Material | Nitrile |
| Durometer | 45 (Red) |
| Mount | 1.25" Square |
| Temperature Range | 15-59 Sec: -20° to 250°F (-29° to 121°C) 1-5 Min: 15° to 180°C (-9° to 82°C) |
| Chemical Resistance | Oil, water, grease, hydraulic fluid, alcohol |
| Shape | Round |
| Product Type | Deepdish |
| Cup Size | 3.00 in |
| Product Series Description | Nitrile Rubber |
